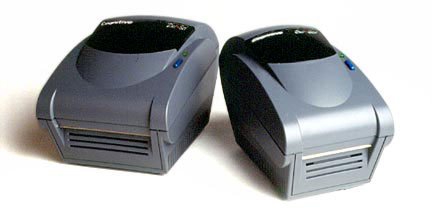

Cognitive LDT24-2043-013 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Cognitive Del Sol LX - Thermal transfer, 203 dpi, 3 ips, 2.4" print width, serial & parallel interfaces, 2MB DRAM, 4MB flash. Includes US power supply & product reference guide. Order cables separately. See accessories.

The Del Sol LX is the most versatile 2" and 4" printer family available. Small and fast, Del Sol LX printers deliver rugged thermal transfer labels or economical direct thermal labels in seconds. Large media capacity, easy access loading, and user replaceable conveniences further assure maximum productivity.

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 3 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.1"
  • Maximum Label Width: 4.3"
  • Maximum Label Length: 20"
  • Media Sensor:
    • Gap
    • Notch
    • Black Bar
  • Input Voltage: 120 V AC
  • RAM Memory: 512KB
  • Flash Memory: 4MB

General Information

Physical Characteristics

  • Dimensions:
    • 7" (177.8mm) x 7" (177.8mm) x 10" (254mm)
    • 7" (177.8mm) x 7" (177.8mm) x x 10" (254mm)
  • Weight: 3.5 lb (1.59 kg)

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating
    • -4°F (-20°C) to 122°F (50°C) Storage
  • Humidity: 25 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 7"

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Cognitive
Model Del Sol LX
Print Method Thermal Transfer
Max Label Width 2.40
Print Resolution 203 dpi
Label Core 1.5 inches
Interface Options Parallel, Serial
Print Speed 3
Maximum Print Width 2.10
Max Roll Outer Diameter 5
Printer Type Desktop
Printer Mobility Not Mobile


Customer Review Summary

Recommended Accessories for Model: Cognitive Del Sol LX Printer
Cables To Go Cables (13172)
6ft USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
In Stock: Ships Same Day
$12.30
+ Add to Quote
Cables To Go Cables (03019)
Serial printer cable, 9-pin to 25-pin, 6ft. Replaces (Part# PCM-1970-06).
In Stock: Ships Same Day
$12.70
+ Add to Quote
BCI (2901-6MF9)
6' Serial cable (25 pin male to 9 pin female)
In Stock: Ships Same Day
$11.90
+ Add to Quote
Zebra (CCTSP212-10)
Null modem cable (9F/9M)
In Stock: Ships Same Day
$13.50
+ Add to Quote
Zebra (2901-9MF9ST)
Cable, Serial, 6 feet, Straight, DB-9 to DB-9, Compatible with Zebra.
In Stock: Ships Same Day
$11.40
+ Add to Quote
Recommended Labels for Model: Cognitive Del Sol LX Printer
CognitiveTPG Label (03-02-1660)
4.25" x 6" Thermal transfer paper labels. 320 labels/roll, 12 roll case, for Blast, DelSol, Solus.
Ships in 3-5 Days
$272.90
+ Add to Quote
CognitiveTPG Label (03-02-1827)
4" x 6" Direct thermal paper label. 326 labels/roll, 12 roll case.
In Stock: Ships Same Day


4.0

(1 reviews)

$237.80
+ Add to Quote
CognitiveTPG Label (03-02-1820)
2.4" x 2" Direct thermal paper label. 914 labels/roll, 12 roll case.
In Stock: Ships Same Day
$216.40
+ Add to Quote
CognitiveTPG Label (03-02-1523)
4.25" x 3" Direct thermal paper label. 627 labels/roll, 12 roll case.
In Stock: Ships Same Day
$313.20
+ Add to Quote
CognitiveTPG Label (03-02-1520)
1.15" x 1" Direct thermal paper label. 2 across. 3,370 labels/roll, 12 roll case.
In Stock: Ships Same Day
$145.20
+ Add to Quote
Recommended Ribbons for Model: Cognitive Del Sol LX Printer
Cognitive Blaster Advantage (04-00-0031-01)
2.4" x 263' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (04-00-0031-01-R)
In Stock: Ships Same Day
$92.30
+ Add to Quote
Cognitive Blaster Advantage (04-00-0028-04)
2.4" x 263' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (04-00-0028-04-R)
In Stock: Ships Same Day
$92.30
+ Add to Quote
Cognitive Blaster Advantage (04-00-0028-01)
4.25" x 263' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (04-00-0028-01-R)
In Stock: Ships Same Day
$151.80
+ Add to Quote
Cognitive Ribbon (04-00-0044-01)
2.4" x 458' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 12, Core Size: 0.5"
In Stock: Ships Same Day
$147.30
+ Add to Quote
Cognitive Ribbon (04-00-0041-03)
4.25" x 458' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, rolls/case: 12, Core Size: 0.5"
In Stock: Ships Same Day
$271.80
+ Add to Quote
Protect Your Product

The Cognitive LDT24-2043-013 is also known as Cognitive Solutions COG-LDT242043013 or LDT242043013 .
