Cognitive Del Sol LX – Barcode Label Printer – 203 dpi – Direct Thermal

Part Number: LDD42-2043-013
Model: Del Sol LX
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Cognitive Del Sol LDD42 Thermal Label Printer - 203 x 203 dpi - Serial, Parallel
Explore all Cognitive Del Sol LX Barcode Label Printers
Add to Quote
Cognitive LDD42-2043-013 Barcode Label Printer
Cognitive LDD42-2043-013 Barcode Label Printer
Cognitive LDD42-2043-013 Barcode Label Printer Cognitive LDD42-2043-013 Barcode Label Printer
Full specifications (PDF)

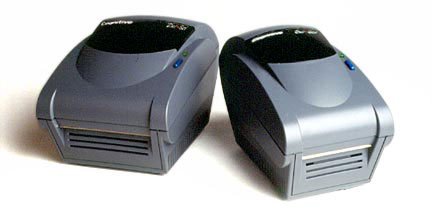

Cognitive Del Sol LX Barcode Label Printer Model Overview

The Del Sol LX is the most versatile 2" and 4" printer family available. Small and fast, Del Sol LX printers deliver rugged thermal transfer labels or economical direct thermal labels in seconds. Large media capacity, easy access loading, and user replaceable conveniences further assure maximum productivity.
Cognitive LDD42-2043-013 Barcode Label Printer Overview

Del Sol LDD42 delivers rugged thermal transfer labels or economical direct thermal labels in seconds. Large media capacity, easy access loading, and user replaceable conveniences further assure maximum productivity.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution:
203 x 203 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • UPC
  • EAN 128
  • Code 39
  • Plessey
  • MSI
  • Code 16K
  • Code 128
  • Codabar
  • Maxi Code
  • PDF-417
  • Code 93
  • Interleaved 2 of 5
Memory
Standard Memory:
512 KB
Memory Technology:
DRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Sensor:
Reflective Media Sensor
Maximum Roll Diameter:
7"
Maximum Label Width:
4.30"
Maximum Label Length:
20"
Software
Software Included:
  • Label design software
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
7"
Width:
7"
Depth:
10"
Miscellaneous
Package Contents:
  • Del Sol LX DD42 Thermal Label Printer
  • Companion CD-ROM
  • Power supply
  • Windows drivers
  • Quick Start Guide
  • Programmer's Guide
Power Adapter Included:
Yes
Additional Information:
  • Graphics Formats: PCX, BMP
  • Font Rotations: 0, 90, 180 and 270 degrees
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
