Cognitive LDD24-2043-013 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Cognitive Del Sol LX - Direct thermal, 203 dpi, 3 ips, 2.4" print width, serial & parallel interfaces, 2MB DRAM, 4MB flash. Includes US power supply & product reference guide. Order cables separately. See accessories.

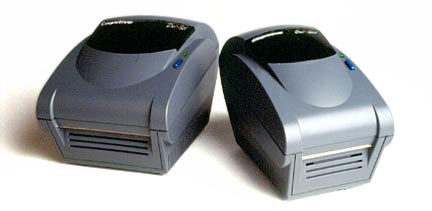

The Del Sol LX is the most versatile 2" and 4" printer family available. Small and fast, Del Sol LX printers deliver rugged thermal transfer labels or economical direct thermal labels in seconds. Large media capacity, easy access loading, and user replaceable conveniences further assure maximum productivity.

Technical Information

  • Print Method:
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 3 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 2.1"
  • Maximum Label Width: 2.4"
  • Maximum Label Length: 40"
  • Media Sensor:
    • Gap
    • Notch
    • Black Bar
  • Input Voltage: 120 V AC
  • RAM Memory: 512KB
  • Flash Memory: 4MB

General Information

Physical Characteristics

  • Dimensions:
    • 7" (177.8mm) x 4.5" (114.3mm) x 10" (254mm)
    • 7" (177.8mm) x 4.5" (114.3mm) x x 10" (254mm)
  • Weight: 3.1 lb (1.41 kg)

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating
    • -4°F (-20°C) to 122°F (50°C) Storage
  • Humidity: 25 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 7"

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Cognitive
Model Del Sol LX
Max Label Width 2.40
Interface Options Serial, Parallel
Printer Type Desktop
Print Method Direct Thermal
Print Resolution 203 dpi
Label Core 1.5 inches
Print Speed 3
Maximum Print Width 2.10
Max Roll Outer Diameter 5
Printer Mobility Not Mobile
