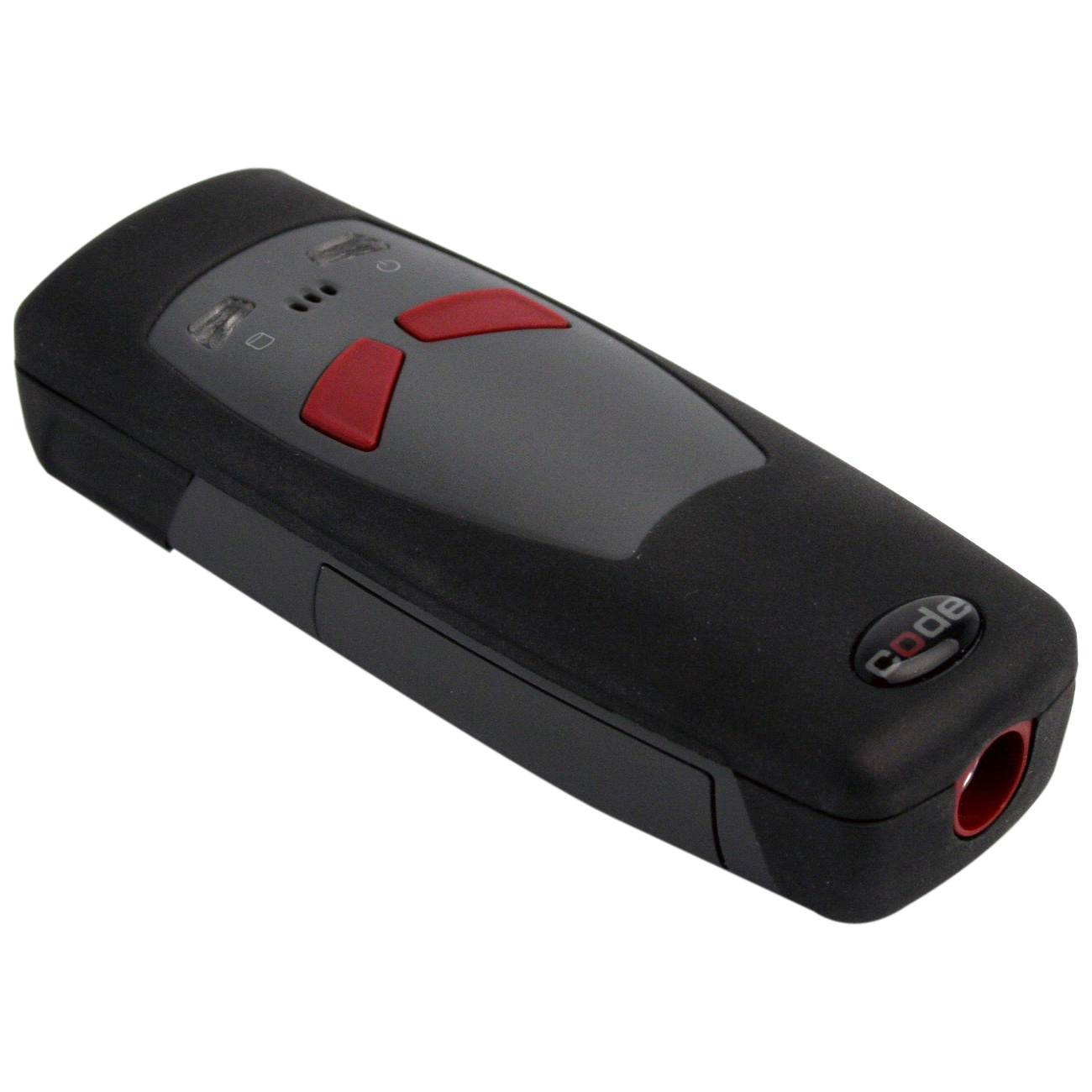

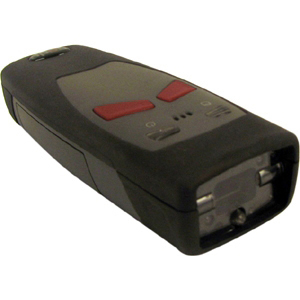

Code Reader 2500 (CR2500) – Barcode Scanner – 1D

Part Number: CR2512G-HX-B2-RX-CX-F1
Model: Reader 2500 (CR2500)
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Code Code Reader 2500 - 1D, 2D - LED - CMOS - Linear
Explore all Code Reader 2500 (CR2500) Barcode Scanners
Add to Quote
Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner
Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner
Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner
Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner
Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner
Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner
Full specifications (PDF)

Code Reader 2500 (CR2500) Barcode Scanner Model Overview

The Code Reader 2500 (CR2500) decodes barcodes faster and offers features not found in other readers, including new automatic glare reducing illumination technology. The result is unequaled performance, even on difficult reading surfaces, including circuit boards, IV bags, patient-wristbands, driver licenses and other shiny or curved surfaces. The Reader 2500 (CR2500) also offers the next generation in dual-field optics and is the only barcode reader that can read both wide linear and the smallest of 2D barcodes. The optimal focus and field of view indicator of the Reader 2500 (CR2500) make barcode reading even easier than before.
Code CR2512G-HX-B2-RX-CX-F1 Barcode Scanner Overview

With high-performance bar code reading technology the Code Reader 2500 (CR2500) is the most advanced, modular bar code reader on the market today. The CR2500 decodes bar codes faster and offers new automatic glare reducing illumination technology not found in other readers. The result is unequaled performance, even on difficult reading surfaces, including circuit boards, IV bags, patient-wristbands, driver licenses and other shiny or curved surfaces.

Full specifications (PDF)
Technical Information
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • UPC/EAN/JAN
  • Code 39
  • Code 128
  • Interleaved 2 of 5
  • Codabar
  • GS1 DataBar (RSS)
  • MSI Plessey
  • Code 11
  • Code 93
  • NEC 2 of 5
  • Matrix 2 of 5
  • Trioptic Code
  • Telepen
  • Hong Kong 2 of 5
  • Pharmacode
  • Composite Codes

Stacked 1D:

  • PDF417
  • Micro PDF417
  • Codablock A & F

2D:

  • Data Matrix
  • QR Code
  • Micro QR Code
  • Aztec Code
  • Maxicode

Proprietary 2D:

  • GoCode

Postal:

  • USPS OneCode (4CB)
  • Postnet
  • Planet
  • Japanese
  • Post
  • Australian Post
  • Royal Mail
  • Kix Code

OCR:

  • OCR-A and OCR-B Fonts
  • Passports
Light Source:
LED
Image Sensor Type:
CMOS
Depth of Field:
Scan Pattern:
Linear
Physical Characteristics
Height:
1.2"
Width:
1.8"
Depth:
4.9"
Weight (Approximate):
3 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
