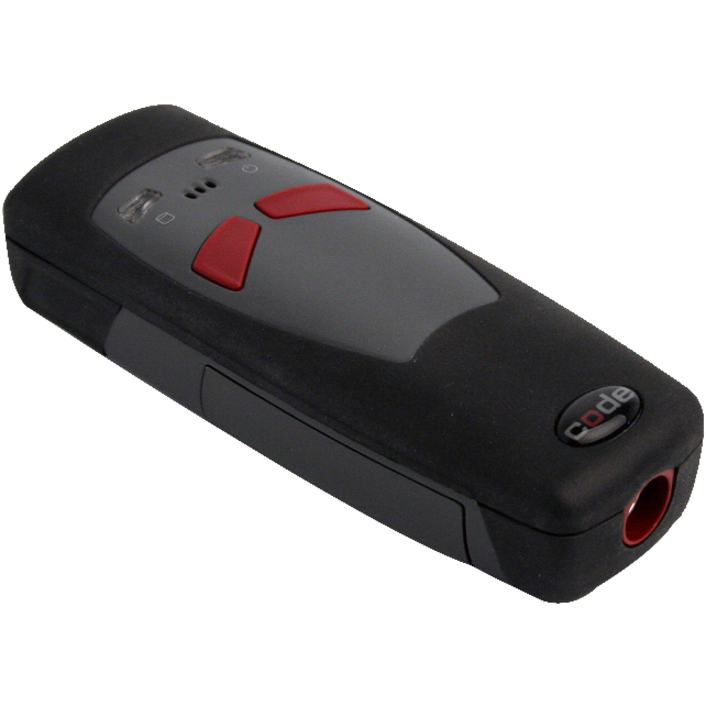

Code CR2512G-HX-B0-RX-C0-F1 Barcode Scanner

The Code CR2512G-HX-B0-RX-C0-F1 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Code Reader 2500 (CR2500) - Code Code Reader 2500 - Cable Connectivity - 1D, 2D - LED - CMOS - Linear - USB
Scanner Capability
1D
Scanner Type
Imager
  • Perfect for applications that require direct association with a workstation or a notebook
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More
Code Reader 2500 (CR2500) Barcode Scanner Model Overview
The Code Reader 2500 (CR2500) decodes barcodes faster and offers features not found in other readers, including new automatic glare reducing illumination technology. The result is unequaled performance, even on difficult reading surfaces, including circuit boards, IV bags, patient-wristbands, driver licenses and other shiny or curved surfaces. The Reader 2500 (CR2500) also offers the next generation in dual-field optics and is the only barcode reader that can read both wide linear and the smallest of 2D barcodes. The optimal focus and field of view indicator of the Reader 2500 (CR2500) make barcode reading even easier than before.
Code CR2512G-HX-B0-RX-C0-F1 Barcode Scanner Overview

With high-performance bar code reading technology the Code Reader 2500 (CR2500) is the most advanced, modular bar code reader on the market today. The CR2500 decodes bar codes faster and offers new automatic glare reducing illumination technology not found in other readers. The result is unequaled performance, even on difficult reading surfaces, including circuit boards, IV bags, patient-wristbands, driver licenses and other shiny or curved surfaces.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • UPC/EAN/JAN
  • Code 39
  • Code 128
  • Interleaved 2 of 5
  • Codabar
  • GS1 DataBar (RSS)
  • MSI Plessey
  • Code 11
  • Code 93
  • NEC 2 of 5
  • Matrix 2 of 5
  • Trioptic Code
  • Telepen
  • Hong Kong 2 of 5
  • Pharmacode
  • Composite Codes

Stacked 1D:

  • PDF417
  • Micro PDF417
  • Codablock A & F

2D:

  • Data Matrix
  • QR Code
  • Micro QR Code
  • Aztec Code
  • Maxicode

Proprietary 2D:

  • GoCode

Postal:

  • USPS OneCode (4CB)
  • Postnet
  • Planet
  • Japanese
  • Post
  • Australian Post
  • Royal Mail
  • Kix Code

OCR:

  • OCR-A and OCR-B Fonts
  • Passports
Light Source:
LED
Image Sensor Type:
CMOS
Depth of Field:
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Height:
1.2"
Width:
1.8"
Depth:
4.9"
Weight (Approximate):
3 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Code CR2512G-HX-B0-RX-C0-F1 Barcode Scanner is also known as CR2512GHXB0RXC0F1
