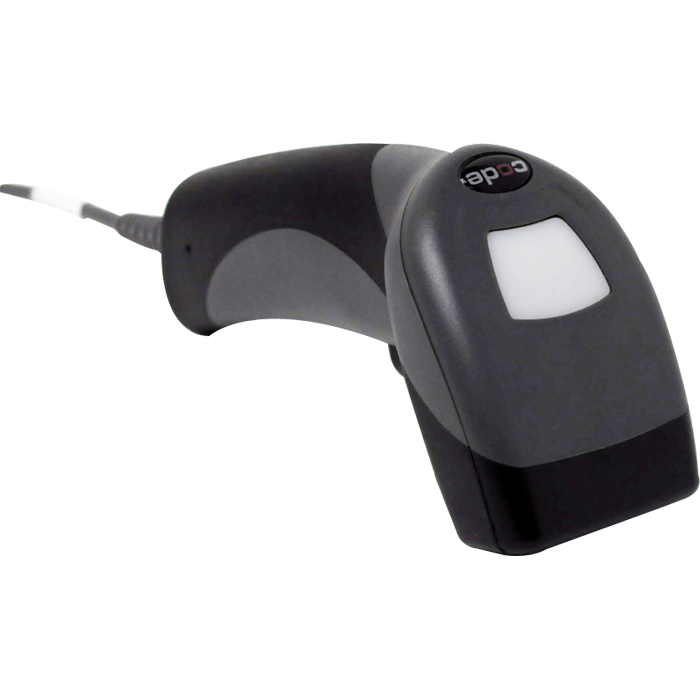

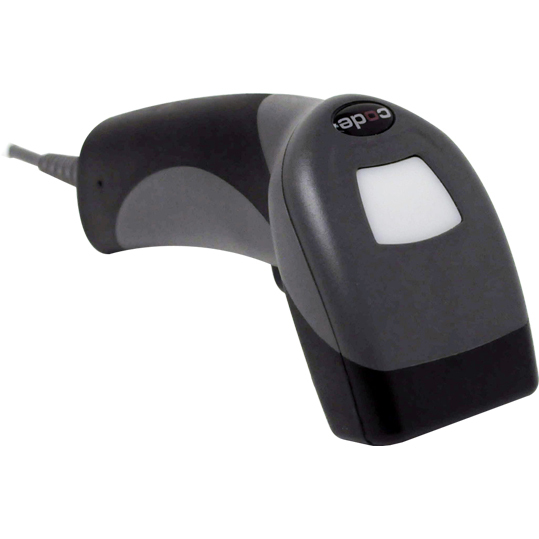

Code Reader 1400 (CR1400) – Barcode Scanner – 1D

Part Number: CR1421-PKU-F1
Model: Reader 1400 (CR1400)

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Code Code Reader 1400 - Cable Connectivity - 12.20" Scan Distance - 1D, 2D - LED - CMOS - Omni-directional - USB - Dark Gray

Code Reader 1400 (CR1400) Barcode Scanner Model Overview

The Reader 1400 (CR1400) is a compact, rugged, barcode reader that features a high performance scanning, patented dual-field optical platform and intuitive targeting that makes reading 1D and 2D bar codes extremely fast, reliable, and more affordable than ever. The innovative design of the Reader 1400 (CR1400) makes it one of the smallest, most durable bar code readers on the market today. Whether it is being used in a healthcare, retail, or other high-use environments, the Reader 1400 (CR1400)'s disinfectant ready plastic housing, and IP54 rating ensures that the performance and life of the reader is never compromised by harsh cleaning agents, dust and water ingress, or even multiple drops. Applications for the Reader 1400 (CR1400) include: Healthcare, Mobile coupon or ticketing (event, airline, cinema, etc), Pharmacy, Patrol Vehicles, Retail, and Manufacturing.
Code CR1421-PKU-F1 Barcode Scanner Overview

The Code Reader™ 1400(CR1400) is a compact, rugged, bar code reader that features a high performance scan engine, patented dual-field optical platform and intuitive targeting that makes reading 1D and 2D bar codes extremely fast, reliable, and more affordable than ever.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • UPC/EAN/JAN
  • Code 39
  • Code 128
  • Interleaved 2 of 5
  • Codabar
  • GS1 DataBar (RSS)
  • MSI Plessey
  • Code 11
  • Code 93
  • NEC 2 of 5
  • Matrix 2 of 5
  • Trioptic Code
  • Telepen
  • Hong Kong 2 of 5
  • Pharmacode

Stacked 1D:

  • PDF417
  • Micro PDF417
  • Codablock A & F
  • Composite Codes

2D:

  • Data Matrix
  • QR Code
  • Micro QR Code
  • Aztec Code
  • Maxicode

Proprietary 2D:

  • GoCode

Postal:

  • USPS OneCode (4CB)
  • Postnet
  • Planet
  • Japanese Post
  • Australian Post
  • Royal Mail
  • Kix Code

OCR:

  • OCR-A and OCR-B Fonts
  • Passports
Light Source:
LED
Image Sensor Type:
CMOS
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 3.9" - 5"@3mil - Code 39
  • 2.2" - 8"@7.5mil - Code 39
  • 2" - 10.8"@13mil - UPC
  • 3.7" - 4.7"@4.2mil - Data Matrix
  • 3.7" - 5.5"@5mil - Data Matrix
  • 3.1" - 6.3"@6.3mil - Data Matrix
  • 1.6" - 7.9"@10mil - Data Matrix
  • 1.6" - 12.2"@20.8mil - Data Matrix
Scan Pattern:
Omni-directional
Scanning Distance:
12.20"
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Dark Gray
Height:
5.5"
Width:
2"
Depth:
2.8"
Weight (Approximate):
3.90 oz
Miscellaneous
Additional Information:

USB Cable separate

Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0778889923689
UPC: 778889923689
EAN: 0778889923689
UNSPSC: 43211701
