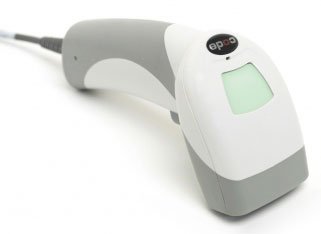

Code CR1411-CX Barcode Scanner

Code CR1500-K103-CX Barcode Scanner A newer version of this item is available.
It is replaced by the Code CR1500-K103-CX Barcode Scanner.
Code Reader 1400 (CR1400) - SCANNER ONLY. 2D Imager, USB or RS-232 interfaces. Color: White. Does not include necessary cables. For the full kit see (Part# CR1411-PKU).
Scanner Capability
2D
Scanner Type
CCD, Imager
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More

Need a different version? See all Code Reader 1400 (CR1400) Barcode Scanners

Discontinued See Replacement
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Code CR1411-CX Barcode Scanner
Code CR1411-CX Barcode Scanner
Code CR1411-CX Barcode Scanner
Code CR1411-CX Barcode Scanner Code CR1411-CX Barcode Scanner

Full specifications (PDF)
Code Reader 1400 (CR1400) Barcode Scanner Model Overview
The Reader 1400 (CR1400) is a compact, rugged, barcode reader that features a high performance scanning, patented dual-field optical platform and intuitive targeting that makes reading 1D and 2D bar codes extremely fast, reliable, and more affordable than ever. The innovative design of the Reader 1400 (CR1400) makes it one of the smallest, most durable bar code readers on the market today. Whether it is being used in a healthcare, retail, or other high-use environments, the Reader 1400 (CR1400)'s disinfectant ready plastic housing, and IP54 rating ensures that the performance and life of the reader is never compromised by harsh cleaning agents, dust and water ingress, or even multiple drops. Applications for the Reader 1400 (CR1400) include: Healthcare, Mobile coupon or ticketing (event, airline, cinema, etc), Pharmacy, Patrol Vehicles, Retail, and Manufacturing.
Code CR1411-CX Barcode Scanner Overview

The Code Reader™ 1400(CR1400) is a compact, rugged, bar code reader that features a high performance scan engine, patented dual-field optical platform and intuitive targeting that makes reading 1D and 2D bar codes extremely fast, reliable, and more affordable than ever.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • UPC/EAN/JAN
  • Code 39
  • Code 128
  • Interleaved 2 of 5
  • Codabar
  • GS1 DataBar (RSS)
  • MSI Plessey
  • Code 11
  • Code 93
  • NEC 2 of 5
  • Matrix 2 of 5
  • Trioptic Code
  • Telepen
  • Hong Kong 2 of 5
  • Pharmacode

Stacked 1D:

  • PDF417
  • Micro PDF417
  • Codablock A & F
  • Composite Codes

2D:

  • Data Matrix
  • QR Code
  • Micro QR Code
  • Aztec Code
  • Maxicode

Proprietary 2D:

  • GoCode

Postal:

  • USPS OneCode (4CB)
  • Postnet
  • Planet
  • Japanese Post
  • Australian Post
  • Royal Mail
  • Kix Code

OCR:

  • OCR-A and OCR-B Fonts
  • Passports
Light Source:
LED
Image Sensor Type:
CMOS
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 3.9" - 5"@3mil - Code 39
  • 2.2" - 8"@7.5mil - Code 39
  • 2" - 10.8"@13mil - UPC
  • 3.7" - 4.7"@4.2mil - Data Matrix
  • 3.7" - 5.5"@5mil - Data Matrix
  • 3.1" - 6.3"@6.3mil - Data Matrix
  • 1.6" - 7.9"@10mil - Data Matrix
  • 1.6" - 12.2"@20.8mil - Data Matrix
Scan Pattern:
Omni-directional
Scanning Distance:
12.20"
Interfaces/Ports
Host Interface:
  • Serial
  • USB
Physical Characteristics
Color:
White
Height:
5.5"
Width:
2"
Depth:
2.8"
Weight (Approximate):
3.90 oz
Miscellaneous
Additional Information:

USB Cable separate

Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Code CR1411-CX Barcode Scanner is also known as COD-CR1411CX or CR1411CX.
