Code CR1200G-C20-F1 Barcode Scanner

The Code CR1200G-C20-F1 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Code CR1200 - Code Code Reader 1200 - Cable Connectivity - LED - CMOS - USB
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • LED aimer is a perfect choice for patient-facing applications
Read More

Need a different version? See all Code CR1200 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare

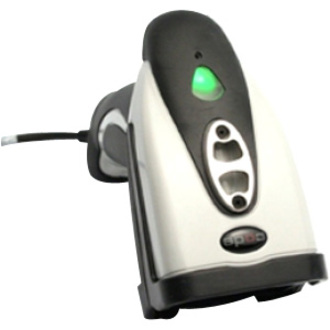

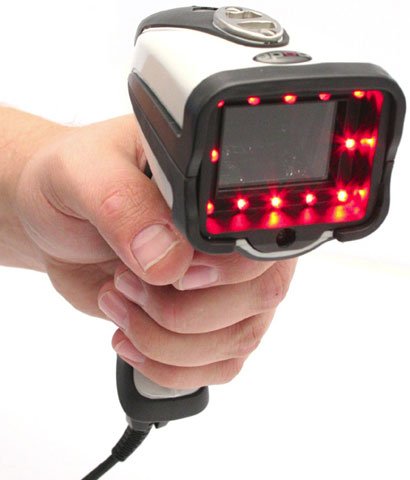

Code CR1200G-C20-F1 Barcode Scanner
Code CR1200G-C20-F1 Barcode Scanner Code CR1200G-C20-F1 Barcode Scanner Code CR1200G-C20-F1 Barcode Scanner
Code CR1200G-C20-F1 Barcode Scanner
Code CR1200G-C20-F1 Barcode Scanner
Code CR1200G-C20-F1 Barcode Scanner
Full specifications (PDF)
Code CR1200 Barcode Scanner Model Overview
The Code CR1200 is the industry's next generation barcode reader, providing the power of digital imaging technology at the lowest cost. Built for cabled 'point and shoot' omni-directional applications, the CR1200 is Code's low-cost addition to its high performance line of barcode readers. CR1200 is barcode reading simplicity defined, and its rugged yet lightweight flexibility makes it an ideal reader for all linear and matrix barcode reading applications.
Code CR1200G-C20-F1 Barcode Scanner Overview

Simple, fast and affordable, Code Reader 1200 (CR1200) provides the power of digital imaging technology at the lowest cost. Built for cabled 'point and shoot' omni-directional applications, CR1200 is Code's low-cost addition to its high performance line of bar code readers. The CR1210 has the same rugged design as the CR1200 but is a near field reader that provides support for Matrix symbols with cell resolution requirements of 6.3 mil (0.16 mm).

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:

1D:

  • UPC/EAN/JAN
  • Code 39
  • Code 128
  • Interleaved 2 of 5
  • Codabar
  • GS1 DataBar (RSS)
  • MSI Plessey
  • Code 11
  • Code 93
  • NEC 2 of 5
  • Matrix 2 of 5
  • Trioptic Code
  • Telepen
  • Hong Kong 2 of 5
  • Pharmacode
  • Composite Codes

Stacked 1D:

  • PDF417
  • Micro PDF417
  • Codablock A & F

2D:

  • Data Matrix
  • QR Code
  • Micro QR Code
  • Aztec Code
  • Maxicode

Proprietary 2D:

  • GoCode

Postal:

  • USPS OneCode
  • POSTNET
  • PLANET
  • Japanese Post
  • Australian Post
  • Royal Mail
  • KIX Code

OCR:

  • OCR-A and OCR-B Fonts
  • Passport
Light Source:
LED
Image Sensor Type:
CMOS
Depth of Field:
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Height:
7"
Width:
2.5"
Weight (Approximate):
6.38 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Code CR1200G-C20-F1 Barcode Scanner is also known as CR1200GC20F1
