Code CR1011-C501 Barcode Scanner

The Code CR1011-C501 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Code Reader 1000 (CR1000) - Code Code Reader 1000 Desktop Barcode Scanner - Cable Connectivity - 1D, 2D - CMOS - Light Gray
Scanner Type
CCD, Imager
  • Perfect for space-obliged situations
  • Perfect for applications that require direct association with a workstation or a notebook
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Read More
Code Reader 1000 (CR1000) Barcode Scanner Model Overview
The Code Reader 1000 (CR1000) builds upon its patented dual-field optical platform and intuitive LED targeting design to read both wide linear and small two-dimensional barcodes fast and accurately. Physical parameters include compact form factor, manual or automatic triggering for handheld or hands-free operation, and disinfectant-ready housing. Of particular note, the Reader 1000 (CR1000) carries Code's glare-reduction technology for scanning barcodes printed on shiny surfaces found in medical products such as bottles, syringes, and IV bags. Through effective power management, the Reader 1000 (CR1000) achieves the lowest energy consumption of any product in its class, according to the manufacturer, thus making it well-suited for the full range of self-service configurations. Compatible with Code's Cortex software configuration utility, the device also employs Code's new rapid disconnect Affinity cables. Data editing and parsing are accomplished through JavaScript. The device also comes with a two-year warranty standard.
Code CR1011-C501 Barcode Scanner Overview

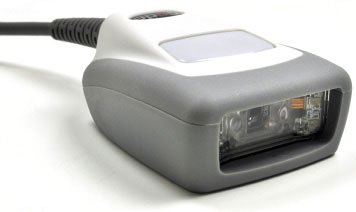

The Code Reader™ 1000 (CR1000) is a compact, cabled barcode reader that takes up limited workspace without compromising barcode reading performance. The patented dual field optical platform of the CR1000 allows users to quickly scan both wide 1D barcodes and small dense 2D barcodes.

Users can operate the CR1000 handheld or in-stand presentation mode, and for increased efficiency users can select continuous scan or motion detection barcode reading. For fixed mount and OEM applications, the CR1000 features threaded brass inserts for easy installation.

Featuring high speed, omnidirectional barcode reading, extremely low power consumption and manual or automatic triggering, the CR1000 is the ideal barcode reader for high use environments and excels in reading mobile coupons, ticketing and kiosk applications.
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Codabar
  • Code 11
  • Code 32
  • Code 39
  • Code 93
  • Code 128
  • IATA 2 of 5
  • Interleaved 2 of 5
  • GS1 DataBar (RSS)
  • Hong Kong 2 of 5
  • Matrix 2 of 5
  • MSI Plessey
  • NEC 2 of 5
  • Pharmacode
  • Plessey
  • Straight 2 of 5
  • Telepen
  • Trioptic
  • UPC/EAN/JAN
Stacked 1D:
  • GS1 Composite (CC-A/CC-B/CC-C)
  • MicroPDF
  • PDF417
2D:
  • Aztec Code
  • Code 49
  • Codablock F
  • Data Matrix
  • Han Xin
  • MaxiCode
  • Micro QR
  • QR Code
Proprietary 2D:
  • GoCode(Additional License Required)
Postal Codes:
  • Australian Post
  • Intelligent Mail
  • Japan Post
  • KIX Code
  • Korea Post
  • Planet
  • Postnet
  • UK Royal Mail
  • UPU ID-tags
Image Sensor Type:
CMOS
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Color:
Light Gray
Height:
1.2"
Width:
2.2"
Length:
2.6"
Weight (Approximate):
2.40 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0076930993125
UPC: 076930993125
EAN: 0076930993125
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Code CR1011-C501 Barcode Scanner is also known as COD-CR1011C501 or CR1011C501.
