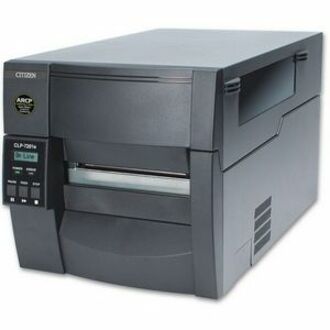

Citizen CLP-7201E Barcode Label Printer

The Citizen CLP-7201E Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Citizen CLP-7200 - Citizen CLP-7201e Thermal Label Printer - 203 x 203 dpi - USB, Serial, Parallel
Print Resolution
203 dpi
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
Read More

Need a different version? See all Citizen CLP-7200 Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Citizen CLP-7201E Barcode Label Printer
Citizen CLP-7201E Barcode Label Printer Citizen CLP-7201E Barcode Label Printer
Citizen CLP-7201E Barcode Label Printer
Citizen CLP-7201E Barcode Label Printer
Full specifications (PDF)
Citizen CLP-7200 Barcode Label Printer Model Overview
The Citizen CLP-7200 series offers superior price performance and ease of use with precision form, fit, and function. Increased processing speed ensures no delay in even the most complex label or tag application. Citizen's unique metal Hi-Lift mechanism allows for easy access for loading of media or ribbons while the rugged heavy-duty steel cabinet and frame provide durability. The CLP-7200 series prints in both thermal transfer and direct thermal mode and comes standard with internal parallel, serial, and USB interfaces.
Citizen CLP-7201E Barcode Label Printer Overview

CLP-7201e Label Printer is ideal for Complex barcode labeling requirements. Flash memory for downloading true-type fonts, graphics and label formates, along with different interfaces.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
7 in/s
Maximum Print Resolution:
203 x 203 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codabar
  • UPC-A
  • POSTNET
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • Interleaved 2 of 5
  • Telepen
  • FIM
  • HIBC
  • PDF-417
  • Maxi Code
  • UPC-E
  • EAN-8
  • EAN-13
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
1 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Fanfold
  • Continuous Label
  • Perforated Label
  • Die-cut Label
  • Tag
  • Ticket
Media Size:
8" x Roll Paper
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Maximum Label Length:
32"
Fonts & Emulation
Language Emulation:
DMX-400
Physical Characteristics
Height:
10.1"
Width:
10.3"
Depth:
17.8"
Miscellaneous
Additional Information:
  • Print Length: Maximum 32"
  • Fonts: 11 System Bit-Mapped fonts including OCR-A, OCR-B, CG Triumvirate, CG Triumvirate Bold and True Type Rasterizer
  • Ribbon Length: 1182 feet
  • Internal Power supply
  • Flash memory card support: 4 MB
  • Ribbon Type:
  • Wax
  • Wax-resin
  • Resin
  • User Interface:
  • 3 Buttons
  • 2 LED's
Platform Supported:
PC
Item Numbers
GTIN: 0047239000715
UPC: 047239000715
EAN: 0047239000715
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Citizen CLP-7201E Barcode Label Printer is also known as CIT-CLP-7201E
