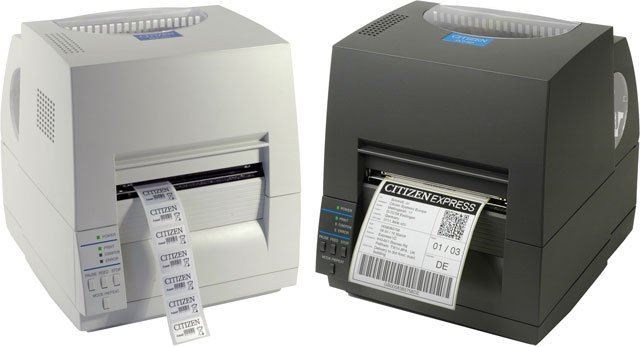

Citizen CLP-631Z Barcode Label Printer

The Citizen CLP-631Z Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Citizen CLP-631 - Citizen CLP-631 Direct Thermal/Thermal Transfer Printer - Monochrome - White - Desktop - Label Print - USB - Serial - 4.10" Print Width - 4 in/s Mono - 300 dpi - Roll Fed, Fanfold, Continuous Form, Perforated Label, Die-cut Label, Tag, Ticket - 4.65" Label Width
Print Resolution
300 dpi
  • Enjoy the optimal performance in today's on-demand labeling applications
  • The printer is capable of printing sharp and detailed monochrome documents quickly
Read More

Need a different version? See all Citizen CLP-631 Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Citizen CLP-631Z Barcode Label Printer
Citizen CLP-631Z Barcode Label Printer Citizen CLP-631Z Barcode Label Printer
Citizen CLP-631Z Barcode Label Printer
Citizen CLP-631Z Barcode Label Printer
Full specifications (PDF)
Citizen CLP-631 Barcode Label Printer Model Overview
The powerful Citizen CLP-631 offers unparalleled versatility in the desktop thermal printer class. Printing in 300 dpi in both direct thermal and thermal transfer modes, the CLP-631 features a 360-meter ribbon for greater productivity and reduced downtime. Citizen's unique metal Hi-Lift mechanism allows easy access for loading of media and/or ribbons and the adjustable media sensor can handle a wide variety of label configurations including standard and pediatric medical wristbands. The powerful on-board 32 Bit RISC processor delivers exceptional throughput and fast first label out. The CLP-631 comes standard with internal parallel, serial, and USB interfaces. Optional Ethernet and Wifi interfaces are also available.
Citizen CLP-631Z Barcode Label Printer Overview

The powerful CLP-631 provides users with unparalleled features in the desktop thermal printer class. With crisp high printing resolution for images or fine text and an unprecedented 360 meter ribbon for greater productivity and reduced downtime, the CLP-631 is a high performance printer built for the desktop environment.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution:
300 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 11
  • Interleaved 2 of 5
  • Code 39
  • EAN-8
  • EAN-13
  • UPC-E
  • Code 128
  • Code 93
  • Industrial 2 of 5
  • Standard 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • UPC/EAN
  • UPC-A
  • POSTNET
  • Code 49
  • PDF-417
  • Codablock
  • UPS Maxi Code
  • Micro PDF-417
  • Data Matrix
  • QR Code
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Continuous Form
  • Perforated Label
  • Die-cut Label
  • Tag
  • Ticket
Media Handling:
1 x Roll
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • DPL
  • ZPL
Power Description
Input Voltage:
120 V AC
Physical Characteristics
Color:
White
Height:
10.2"
Width:
9.1"
Depth:
11.4"
Miscellaneous
Additional Information:
  • Internal power supply
  • Metal Hi-Lift print mechanism
  • Powerful 32 Bit RISC Processor
  • Standard & pediatric medical wristband capable
  • Active Ribbon Control and Positioning System (ARCP)
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0047239001293
UPC: 047239001293
EAN: 0047239001293
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Citizen CLP-631Z Barcode Label Printer is also known as CIT-CLP-631Z or CLP-631Z.
