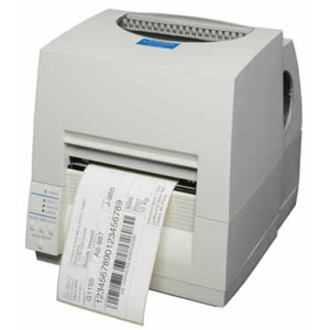

Citizen CLP-631Z-E Barcode Label Printer

The Citizen CLP-631Z-E Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Citizen CLP-631 - Citizen CLP Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - 4.10" Print Width - 4 in/s Mono - 300 dpi - Roll Fed, Fanfold, Continuous Form, Perforated Label, Die-cut Label, Tag, Ticket, Wristband - 4.65" Label Width
Print Resolution
300 dpi
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • Enjoy the optimal performance in today's on-demand labeling applications
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

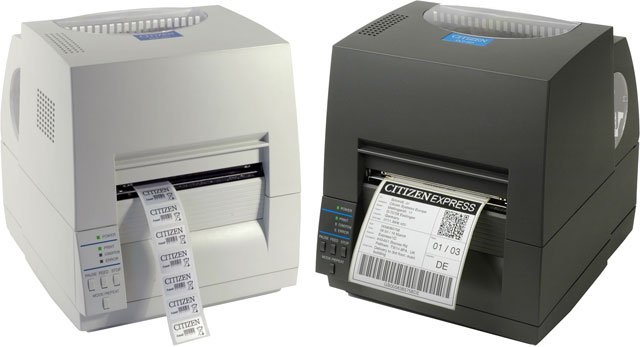

Citizen CLP-631 Barcode Label Printer Model Overview
The powerful Citizen CLP-631 offers unparalleled versatility in the desktop thermal printer class. Printing in 300 dpi in both direct thermal and thermal transfer modes, the CLP-631 features a 360-meter ribbon for greater productivity and reduced downtime. Citizen's unique metal Hi-Lift mechanism allows easy access for loading of media and/or ribbons and the adjustable media sensor can handle a wide variety of label configurations including standard and pediatric medical wristbands. The powerful on-board 32 Bit RISC processor delivers exceptional throughput and fast first label out. The CLP-631 comes standard with internal parallel, serial, and USB interfaces. Optional Ethernet and Wifi interfaces are also available.
Citizen CLP-631Z-E Barcode Label Printer Overview

The powerful CLP-631 provides users with unparalleled features in the desktop thermal printer class. With crisp printing for images or fine text and an unprecedented 360-meter ribbon for greater productivity and reduced downtime the CLP-631 is a high performance printer built for the desktop environment. Citizen's unique metal Hi-Lift mechanism allows easy access for loading of media.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution:
300 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 11
  • Interleaved 2 of 5
  • Code 39
  • EAN-8
  • EAN-13
  • UPC-E
  • Code 93
  • Code 128
  • Industrial 2 of 5
  • Standard 2 of 5
  • Codabar
  • LOGMARS
  • MSI
  • Plessey
  • UPC/EAN
  • UPC-A
  • POSTNET
  • Code 49
  • PDF-417
  • Codablock
  • UPS Maxi Code
  • Micro PDF-417
  • Data Matrix
  • QR Code
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Continuous Form
  • Perforated Label
  • Die-cut Label
  • Tag
  • Ticket
  • Wristband
Media Size:
4.65" x Roll Paper
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • DPL
  • ZPL
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
10.2"
Width:
9.1"
Depth:
11.4"
Miscellaneous
Package Contents:
  • CLP-631 Thermal Label Printer
  • CD (Includes: Label-making software and Drivers)
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Citizen CLP-631Z-E Barcode Label Printer is also known as CIT-CLP-631Z-E or CLP-631Z-E.
