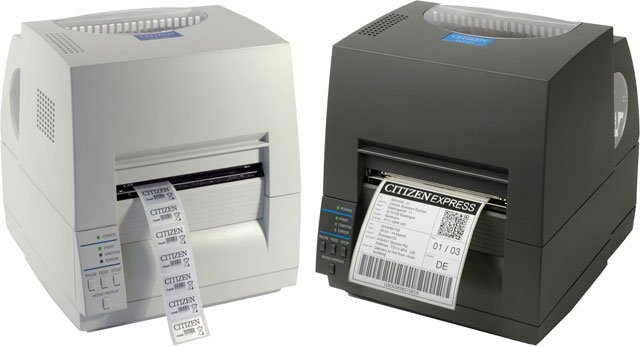

Citizen CLP-631 Barcode Label Printer

The Citizen CLP-631 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Citizen CLP-631 - Citizen CLP-631 Thermal Label Printer - Monochrome - 4 in/s Mono - 300 dpi - USB, Serial, Parallel

Print Resolution

300 dpi

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
Enjoy the optimal performance in today's on-demand labeling applications
Produce high-quality documents with this monochrome printer to increase your productivity
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port

Need a different version? See all Citizen CLP-631 Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Citizen CLP-631 Barcode Label Printer Model Overview

The powerful Citizen CLP-631 offers unparalleled versatility in the desktop thermal printer class. Printing in 300 dpi in both direct thermal and thermal transfer modes, the CLP-631 features a 360-meter ribbon for greater productivity and reduced downtime. Citizen's unique metal Hi-Lift mechanism allows easy access for loading of media and/or ribbons and the adjustable media sensor can handle a wide variety of label configurations including standard and pediatric medical wristbands. The powerful on-board 32 Bit RISC processor delivers exceptional throughput and fast first label out. The CLP-631 comes standard with internal parallel, serial, and USB interfaces. Optional Ethernet and Wifi interfaces are also available.

Citizen CLP-631 Barcode Label Printer Overview

Easy operation
Simple control
High reliability
Easy load media

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution:

300 dpi

Maximum Print Width:

4.10"

Barcode Symbology Supported:

Code 11
Interleaved 2 of 5
Code 39
EAN-8
EAN-13
UPC-E
Code 93
Code 128
Industrial 2 of 5
Standard 2 of 5
Codabar
LOGMARS
MSI
Plessey
UPC/EAN
UPC-A
POSTNET
Code 49
PDF-417
Codablock
UPS Maxi Code
Micro PDF-417
Data Matrix
QR Code

Memory

Standard Memory:

8 MB

Memory Technology:

DRAM

Flash Memory:

2 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Media Types & Handling

Media Type:

Roll Fed
Fanfold
Continuous Form
Perforated Paper
Die-cut Label
Tag
Ticket
Label

Media Size:

4.65" x Roll Paper

Media Sensor:

Reflective Media Sensor

Maximum Roll Diameter:

Maximum Label Length:

0.50"

Label Core Size:

Fonts & Emulation

Language Emulation:

DPL

Power Description

Input Voltage:

110 V AC

Physical Characteristics

Height:

10.6"

Width:

8.8"

Depth:

11.3"

Miscellaneous

Additional Information:

Internal power supply
Metal Hi-Lift print mechanism
Media Sensors: Transmissive and Reflective
Active Ribbon Control and Positioning System (ARCP)

Platform Supported:

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0047239001286

UPC: 047239001286

EAN: 0047239001286

UNSPSC: 43212108

Reviews

Q&A

Labels

Ribbons

Questions? Get help from a
Printer Expert!

The Citizen CLP-631 Barcode Label Printer is also known as CIT-CLP-631 or CLP-631.
