Citizen CLP-521Z-C Barcode Label Printer

The Citizen CLP-521Z-C Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Citizen CLP-521 - Citizen CLP-521 Thermal Label Printer - Monochrome - 4 in/s Mono - 203 dpi - USB, Serial, Parallel

Print Resolution

203 dpi

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
Delivers high-speed, hassle-free labeling solution for your business needs
Produce high-quality documents with this monochrome printer to increase your productivity
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity

Need a different version? See all Citizen CLP-521 Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Citizen CLP-521Z-C Barcode Label Printer

Overview

Full specifications (PDF)

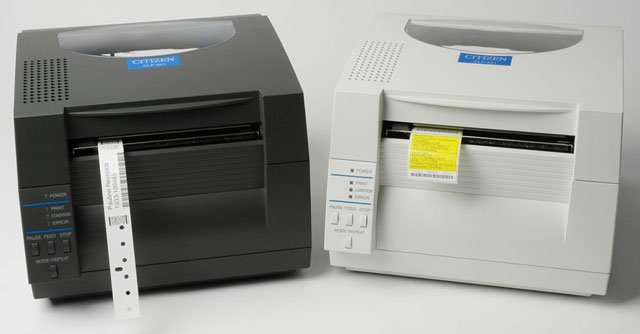

Citizen CLP-521 Barcode Label Printer Model Overview

The Citizen CLP-521 direct thermal printer combines robust printing, 203 dpi resolution and superior price performance, ease of use and precision engineering. Citizen's unique metal Hi-Lift print mechanism allows for quick media loading while an adjustable sensor easily handles a variety of media and label configurations including standard and pediatric medical wristbands. Also, the powerful on-board 32 Bit RISC processor delivers exceptional throughput and fast first label out. If that weren't enough, the CLP-521 features complete connectivity, with standard parallel, serial, and USB interfaces, or choose optional internal Ethernet or WiFi.

Citizen CLP-521Z-C Barcode Label Printer Overview

The CLP-521 Label Printer combines robust printing with superior price performance, ease of use and precision engineering. You'll love Citizen's unique metal Hi-Lift print mechanism, allowing for quick media loading while an adjustable sensor easily handles a variety of media and label configurations including standard and pediatric medical wristbands. Also, the powerful on-board 32 Bit RISC processor delivers exceptional throughput and fast first label out.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution:

203 dpi

Maximum Print Width:

4.10"

Barcode Symbology Supported:

Code 11
Interleaved 2 of 5
Code 39
EAN-8
EAN-13
UPC-E
Code 93
Code 128
Industrial 2 of 5
Standard 2 of 5
Codabar
LOGMARS
MSI
Plessey
UPC/EAN
UPC-A
POSTNET
Code 49
PDF-417
Codablock
UPS Maxi Code
Micro PDF-417
Data Matrix
QR Code

Memory

Standard Memory:

8 MB

Memory Technology:

DRAM

Flash Memory:

2 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Cutter

Cutter:

Yes

Cutting Method:

Automatic

Media Types & Handling

Media Type:

Roll Fed
Fanfold
Continuous Form
Perforated Paper
Die-cut Label
Tag
Ticket
Label

Media Size:

4.65" x Roll Paper

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Fonts & Emulation

Language Emulation:

Power Description

Input Voltage:

110 V AC

Physical Characteristics

Height:

7.3"

Width:

9.1"

Depth:

11.4"

Miscellaneous

Additional Information:

Internal power supply
Metal Hi-Lift print mechanism
Media Sensors: Transmissive and Reflective

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0047239001309

UPC: 047239001309

EAN: 0047239001309

UNSPSC: 43212108
