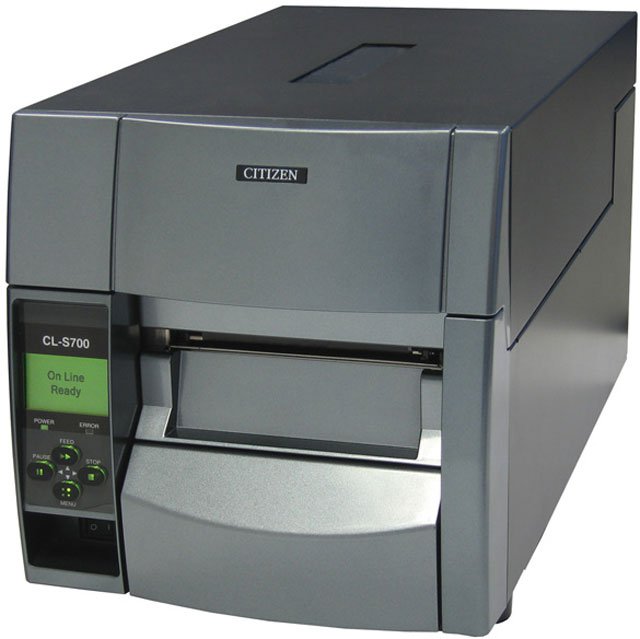

Citizen CL-S703 – Barcode Label Printer – 300 dpi – Thermal Transfer

Part Number: CL-S703-W

Model: CL-S703

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Printing Technology

Thermal Transfer

Print Resolution

300 dpi

Product Description:

Citizen CL-S703 Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - USB - Serial - 4.10" Print Width - 10 in/s Mono - 300 dpi - Wireless LAN - Label, Thermal Paper, Roll Paper, Ticket, Tag, Continuous Label - 4.65" Label Width - 32" Label Length

Explore all Citizen CL-S703 Barcode Label Printers

Add to Quote

Overview

Full specifications (PDF)

Citizen CL-S703 Barcode Label Printer Model Overview

Part of the CL-S700 family of printers, the CL-S703 delivers an outstanding 300dpi resolution for pin-sharp printing. Tough, robust and built to withstand the rigorous of most industrial, warehouse and logistics environments, the CL-S703 is built to provide years of trouble-free use.

Citizen CL-S703-W Barcode Label Printer Overview

The CL-S700 series is built with durability and ease of access in mind.

Featuring a large, programmable front LCD control panel and a revolutionary Cross-Emulation™ control board that allows the printer to switch from Datamax® to Zebra® emulations at the touch of a button, the CL-S700 is designed for years of service.

The CL-S700's front-loading rewinder option is unique in the industry. All rewinder loading and unloading is accomplished from the front of the unit. Ribbon and media loading is equally quick and easy with a Hi-Lift™ metal mechanism that opens to a full 90° allowing for easy access to the ribbon and media path. 300 dpi version now available.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution:

300 dpi

Maximum Print Width:

4.10"

Barcode Symbology Supported:

UPC-E
Code 3 of 9
UPC-A
EAN/JAN-8
EAN/JAN-13
Case Code
HIBC
Code 128
Plessey
Codabar
Interleaved 2 of 5
UPC-5 Digits Add-on
UPC -2 Digits Add-on
Code 93
UPS Maxi Code
UCC/EAN 128
PDF-417
FIM
QR Code
RSS
Aztec Code
Data Matrix

Application/Usage:

Desktop

Memory

Standard Memory:

16 MB

Flash Memory:

4 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Label
Thermal Paper
Roll Paper
Ticket
Tag
Continuous Label

Media Sensor:

Adjustable Media Sensor
Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

10 mil

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Maximum Label Length:

32"

Label Core Size:

Ribbon Core Size:

Power Description

Power Source:

AC Supply

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

10.4"

Width:

10"

Depth:

19.3"

Miscellaneous

Package Contents:

CL-S703 Label Printer
Software CD

Platform Supported:

Certifications & Standards:

UL
C-UL
FCC: class A
CCC
CE Marking

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43212108
