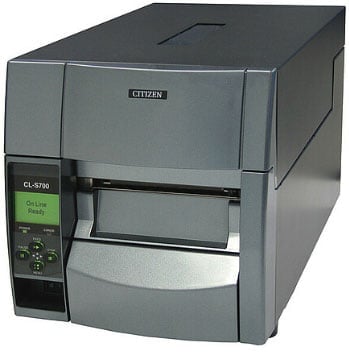

Citizen CL-S700-P Barcode Label Printer

The Citizen CL-S700-P Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Citizen CL-S700 - Barcode Label Printers, Citizen CL-S700 with Peeler

Printing Technology

Thermal Transfer

Print Resolution

203 dpi

Max Print Width

4.75 inch

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
203 maximum print resolution (dpi) offers great dependability with added efficiency
The printer is capable of printing sharp and detailed monochrome documents quickly
Enjoy the optimal performance in today's on-demand labeling applications
4.65" maximum label width for your convenience and feasible usability
32" maximum label length for your convenience and feasible usability
Supports fanfold media type for maximum feasibility and better accommodation of your requirements
Comes with 16 MB standard memory for timely printing with added reliability

Need a different version? See all Citizen CL-S700 Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Citizen CL-S700 Barcode Label Printer Model Overview

The Citizen CL-S700 series is built with durability and ease of access in mind. Featuring a large, programmable front LCD control panel and a revolutionary Cross-Emulation control board that allows the printer to switch from Datamax to Zebra emulations at the touch of a button, the CL-S700 is designed for years of service. The CL-S700's front-loading rewinder option is unique in the industry. All rewinder loading and unloading is accomplished from the front of the unit. Ribbon and media loading is equally quick and easy with a Hi-Lift metal mechanism that opens to a full 90 degrees allowing for easy access to the ribbon and media path

Citizen CL-S700-P Barcode Label Printer Overview

The CL-S700 Label Printer is built with durability and ease of access in mind. Featuring a large, programmable front LCD control panel and a revolutionary Cross-Emulation control board that allows the printer to switch from Datamax to Zebra emulations at the touch of a button, it is designed for years of service.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

10 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.10"

Barcode Symbology Supported:

Code 39
UPC-A
UPC-E
EAN-13
EAN-8
Interleaved 2 of 5
Code 128
HIBC
Plessey
Case Code
UPC -2 Digits Add-on
UPC-5 Digits Add-on
UCC/EAN 128
FIM
UPS Maxi Code
PDF-417
Data Matrix
QR Code
Aztec Code
RSS
POSTNET

Peel Facility:

Yes

Features:

LCD Display

Memory

Standard Memory:

16 MB

Flash Memory:

4 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Media Types & Handling

Media Type:

Fanfold
Continuous Form
Perforated Label
Die-cut Label
Tag
Ticket
Roll Fed

Media Handling:

1 Roll Capacity

Media Thickness:

10 mil

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Maximum Label Length:

32"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

DTPL

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

10"

Width:

10"

Depth:

18.9"

Miscellaneous

Additional Information:

Heavy-duty steel cabinet
Metal Hi-Lift print mechanismM
Active Ribbon Control and Positioning system

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0047239001668

UPC: 047239001668

EAN: 0047239001668

UNSPSC: 43212108
