Programmable front LCD panel

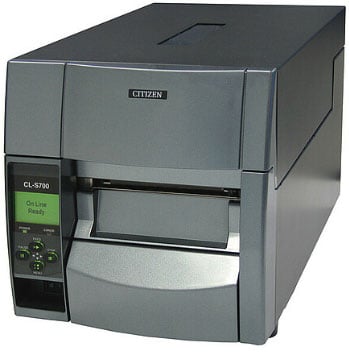

The Citizen CL-S700 series is built with durability and ease of access in mind. Featuring a large, programmable front LCD control panel and a revolutionary Cross-Emulation control board that allows the printer to switch from Datamax to Zebra emulations at the touch of a button, the CL-S700 is designed for years of service. The CL-S700's front-loading rewinder option is unique in the industry. All rewinder loading and unloading is accomplished from the front of the unit. Ribbon and media loading is equally quick and easy with a Hi-Lift metal mechanism that opens to a full 90 degrees allowing for easy access to the ribbon and media path
Technical Information
- Maximum Mono Print Speed: 10 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.10"
- Recommended Use: Label Print
- Features: Peel Facility
- Barcode Symbology Supported:
- Code 3 of 9
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- Interleaved 2 of 5
- Code 128
- HIBC
- Codabar
- Plessey
- Case Code
- UPC 2 and 5 Digit Extension
- Code 93
- UCC/EAN 128
- FIM
- UPS Maxi Code
- PDF-417
- Data Matrix
- QR Code
- Aztec Code
- RSS
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Citizen
- Manufacturer: Citizen Micro HumanTech
- Product Name: CLP S700 Thermal Label Printer
Physical Characteristics
- Height: 10.4"
- Width: 10"
- Depth: 19.3"
- Form Factor: Desktop
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Media Types & Handling
- Maximum Label Width: 4.65"
- Maximum Label Length: 32"
- Media Type:
- Label
- Fanfold
- Continuous Form
- Roll Fed
- Perforated Label
- Die-cut Label
- Tag
- Ticket
- Media Thickness: 10 mil
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Platform Supported: PC
Memory
- Standard Memory: 16 MB
- Memory Technology: SDRAM
- Flash Memory: 4 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Fonts & Emulation
- Language Emulation: ZPL II
Full specifications (PDF)
Full specifications (PDF)
| Brand |
Citizen |
| Model |
CL-S700 |
