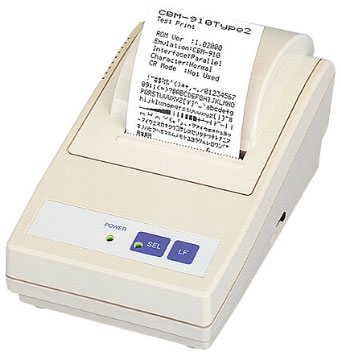

Citizen 910II-24PF120-B Receipt Printer

Part Number: 910II-24PF120-B
Model: CBM-910II
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$278.26

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Receipt Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
2.5 lps
Number of Columns
24

Product Description:

  Receipt Printers, Citizen CBM-910II, Impact POS, 24 Col, Parallel, Ivory
Explore all Citizen CBM-910II Receipt Printers
Add to Quote
Citizen 910II-24PF120-B Receipt Printer
Citizen 910II-24PF120-B Receipt Printer
Citizen 910II-24PF120-B Receipt Printer Citizen 910II-24PF120-B Receipt Printer
Full specifications (PDF)

Citizen CBM-910II Receipt Printer Model Overview

The CBM-910II is a compact, palm-sized dot-impact printer uniquely designed to meet diverse printing needs. Ideal for applications such as data-logging, coin-counting, and various measurement terminals, this lightweight printer combines high-speed performance with energy efficiency. Its advanced features, including paper-near-end detection and flexible connectivity options, make it an exceptional choice for businesses requiring reliable, mobile printing solutions.

Key Features
  • Palm-sized Design: Ultra-compact and lightweight for easy portability.
  • Versatile Applications: Perfect for receipts, coupons, tickets, and more.
  • Fast Printing: High speed of approximately 5 lines/sec enhances productivity.
  • Convenient Connectivity: Supports RS-232C serial or Centronics parallel interfaces.
  • Low Power Consumption: Eco-friendly operation keeps energy costs low.


Specifications
  • Printing Method: Dot Matrix
  • Character Configuration: (5+1)x8
  • Number of Columns: 24 columns: 144 dots/line, 40 columns: 180 dots/line
  • Print Speed: Approx. 2.5 - 3.6 lines/sec
  • Character Size: 1.62 x 2.4mm (40 columns), 1.98mm (24 columns)
  • Power Supply: DC 7V ±1V (exclusive adapter)
  • Weight: Approx. 470g
  • Dimensions: 106 (W) x 180 (D) x 88 (H) mm
  • Operating Environment: Temperature 0-40°C, Humidity 35-85% RH
  • Storage Environment: Temperature -20-60°C, Humidity 10-90% RH
  • MCBF: 1.5 million lines (Printing)
  • Compliance: CE Marking, TUV GS, FCC class B, VCCI class B
Citizen 910II-24PF120-B Receipt Printer Overview

The CBM-910II is a compact, palm-sized dot-impact printer that provides users with unparalleled features within the impact printer class. The CBM-910II utilizes a plethora of applications from data-logging, coin-counting, instrumentation and measurement terminals.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2.5 lps
Number of Columns:
24
Maximum Print Width:
2.28"
Application/Usage:
Desktop
Memory
Standard Memory:
2 KB
Interfaces/Ports
Parallel Port:
Yes
Media Types & Handling
Media Type:
Receipt
Media Sensor:
Paper Low Sensor
Media Thickness:
5.12 mil
Maximum Roll Diameter:
3.15"
Maximum Label Width:
2.26"
Maximum Label Length:
39.4 mil
Power Description
Power Source:
Power Adapter
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
3.5"
Width:
4.2"
Depth:
7.1"
Weight (Approximate):
1.04 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • FCC class B
  • TUV-GS
  • CE Marking
  • VCCI class B
  • PSE
  • UL
  • C - UL
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43212102
Questions? Get help from
a POS Expert!

What is your POS application?

The Citizen 910II-24PF120-B Receipt Printer is also known as 910II24PF120B
