Application/Usage:
- Data Networking
- Optical Network

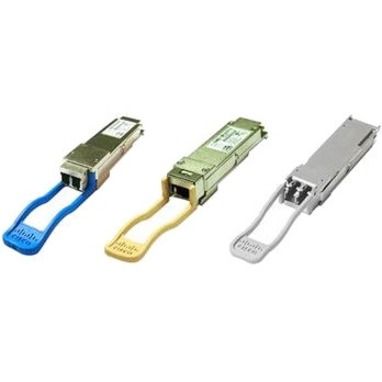

Cisco WSP-Q40GLR4L-RF Transceiver Modules
Part Number:
WSP-Q40GLR4L-RF
Model:
Cisco Parts Accessory Model Overview
Products and parts from Cisco.
Cisco WSP-Q40GLR4L-RF Transceiver Modules Overview
The Cisco WSP-Q40GLR4L QSFP Module supports link lengths of up to 2 km over a standard pair of G.652 single-mode fiber (SMF) with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. It is interoperable with 40GBase-LR4 for distances up to 2km. The operating temperature range is from +10 to +60°C with an optical link budget of 4dB. This 4dB link budget offers the ability to support the loss from patch panels in the link in a data center environment.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC Duplex 40GBase-LR4 Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Single-mode
Ethernet Technology:
40 Gigabit Ethernet
Network Technology:
40GBase-LR4
Physical Characteristics
Form Factor:
Hot-swappable
Height:
0.5"
Width:
0.7"
Depth:
2.9"
Miscellaneous
Compatibility:
MSA Compliant
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43201553
The Cisco WSP-Q40GLR4L-RF Transceiver Modules is also known as
CSC-WSPQ40GLR4LRF
