Cisco WS-C3560X-48PF-S Data Networking

Cisco Catalyst 3560 Series Switch - Catalyst 3560X Switch (48 Port Full PoE IP Base)
  • Layer 3 Switch provides dependable and powerful connectivity for maximum usability
  • Features 48 networking ports to establish large network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Supports layer 3 switching for enhanced performance and usability
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Managed switch provides a reliable foundation for your network
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Read More
$10,438.46
Recommended TrueSupport Coverage (/mo.)
Add to Quote

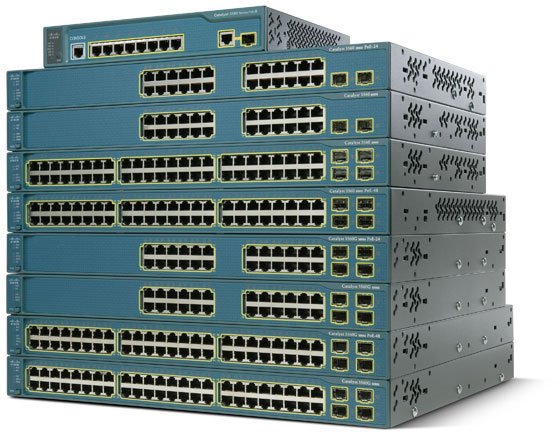

Cisco Catalyst 3560 Series Switch Data Networking Model Overview
The Cisco Catalyst 3560 Series Switch is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, the Catalyst 3560 Series Switch helps you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. You can maintain the simplicity of traditional LAN switching and still deploy networkwide intelligent services such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management and high-performance IP routing.

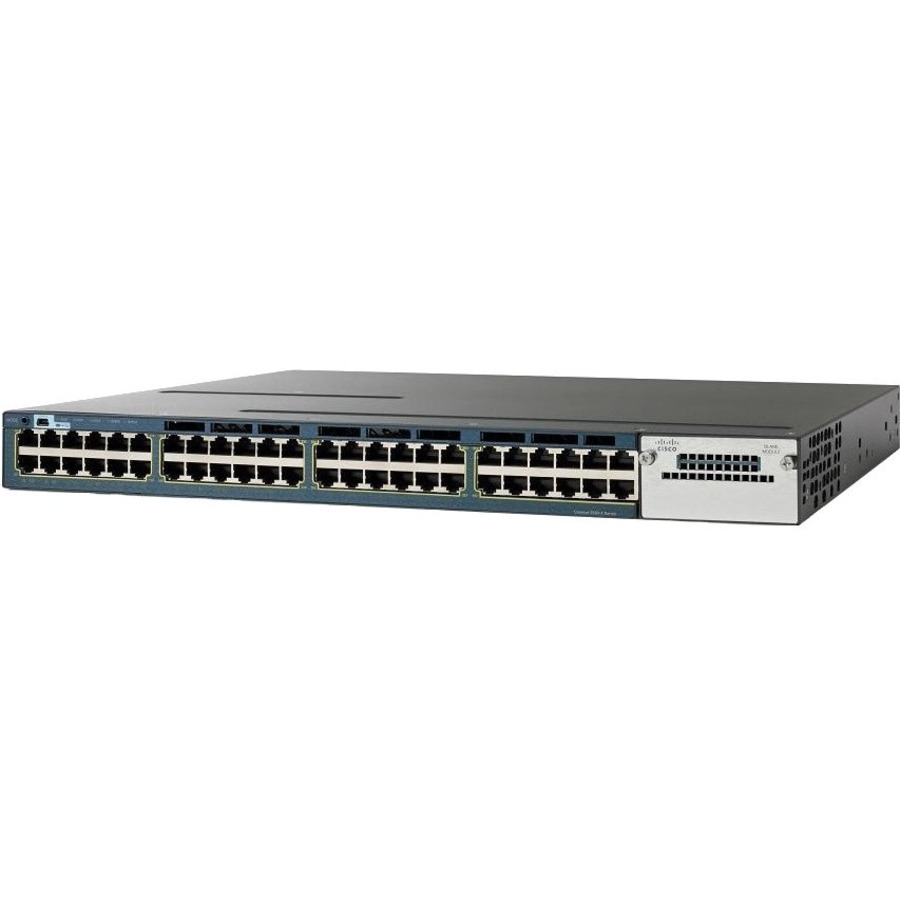

Cisco WS-C3560X-48PF-S Data Networking Overview

The CiscoCatalyst 3560X-48PF-S Ethernet Switch is an enterprise-class lines of stackable and standalone switch, respectively. This switch provides high availability, scalability, security, energy efficiency, and ease of operation with innovative features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power supplies, and Media Access Control Security (MACsec) features.

Interfaces/Ports
Total Number of Network Ports:
48
Port/Expansion Slot Details:
48 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
1
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.8"
Width:
17.5"
Depth:
19.5"
Weight (Approximate):
16.60 lb
Miscellaneous
Package Contents:
  • Catalyst 3560X-48PF-S Layer 3 Switch
  • 1100W AC power supply
Environmentally Friendly:
Yes
Environmental Certification:
RoHS-5
Warranty
Additional Warranty Information:
  • Product does not ship from original manufacturer
  • Product may not be eligible for original manufacturer warranty, rebates or programs
  • Product condition subject to availability
  • Three years direct replacement warranty provided by Ingram Micro
  • Product ships from IMSourcing facility within 2-3 days or from stock
  • Product May ship in non-standard packaging
  • All returns processed directly from IMSourcing
  • Where applicable, IM indicates an Ingram Micro certified pre-owned product
Item Numbers
GTIN: 4053162308312
EAN: 4053162308312
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco WS-C3560X-48PF-S Data Networking is also known as CSC-WSC3560X48PFS
