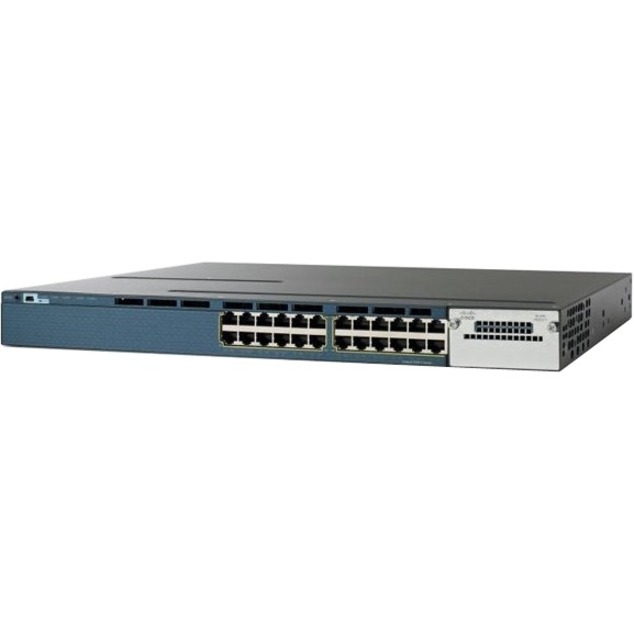

Cisco WS-C3560X-24T-E


0.0

(No reviews)

Be the first to

Write a Review
Cisco - Catalyst 3560X 24 Port Data IP Services
$4,255.30
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:

The Cisco Catalyst 3560 Series Switch is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, the Catalyst 3560 Series Switch helps you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. You can maintain the simplicity of traditional LAN switching and still deploy networkwide intelligent services such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management and high-performance IP routing.

General Information

  • Product Type: Ethernet Switch
  • Product Series: 3560-X
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Name: Catalyst Ethernet Switch
  • Product Line: Catalyst

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.8"
  • Width: 17.5"
  • Depth: 18"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 15.40 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 24
  • Total Number of Network Ports: 24
  • Token Ring Port: No
  • LRE Port: No
  • USB: Yes
  • Modular: No
  • Management Port: Yes
  • Uplink Port: No
  • Bypass: No

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3z
    • IEEE 802.1D
    • IEEE 802.1Q
    • IEEE 802.3ab
    • IEEE 802.1p
    • IEEE 802.3x
    • IEEE 802.3ad (LACP)
    • IEEE 802.1w
    • IEEE 802.1x
    • IEEE 802.1s
    • IEEE 802.1ae
    • EMI and EMC Compliance:
    • FCC Part 15 (CFR 47) Class A
    • ICES-003 Class A
    • EN 55022 Class A
    • CISPR 22 Class A
    • AS/NZS 3548 Class A
    • BSMI Class A
    • VCCI Class A
    • EN 55024
    • EN300386
    • EN 50082-1
    • EN 61000-3-2
    • EN 61000-3-3
    • EN61000-4-2
    • EN61000-4-3
    • EN61000-4-4
    • EN61000-4-5
    • EN61000-4-6
    • EN 61000-6-1
    • Safety Compliance:
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • CCC

Management & Protocols

  • Manageable: Yes
  • Management:
    • Web-Based Management
    • Command Line Interface
    • SNMP v1, v2c, v3
    • RMON 1, 2, 3, 9
    • Syslog
    • Telnet
    • DHCP
    • VLAN
    • QoS
    • MIB

Power Description

  • PoE (RJ-45) Port: No
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Redundant Power Supply: Yes
  • Power Source: Power Supply

Memory

  • Memory Technology: DRAM
  • Flash Memory: 64 MB
  • Standard Memory: 256 MB

Media & Performance

  • Ethernet Technology: Gigabit Ethernet
  • Media Type Supported: Twisted Pair
  • Network Technology: 10/100/1000Base-T

I/O Expansions

  • Number of Total Expansion Slots: 1
  • Shared SFP Slot: No

Network & Communication

  • Layer Supported: 2

Warranty

  • Limited Warranty: Lifetime

Reliability

  • MTBF: 208218 Hour

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Cisco Catalyst 3560 Series Switch
Protect Your Product

The Cisco WS-C3560X-24T-E is also known as CSC-WSC3560X24TE or WSC3560X24TE .
