Cisco WS-C3560V2-48PS-E


0.0

(No reviews)

Be the first to

Write a Review
Cisco Catalyst 3560 Series Switch - Catalyst 3560V2 Switch (48 10/100 PoE + 4 SFP + IPS Enhanced Image)
$9,290.00
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:

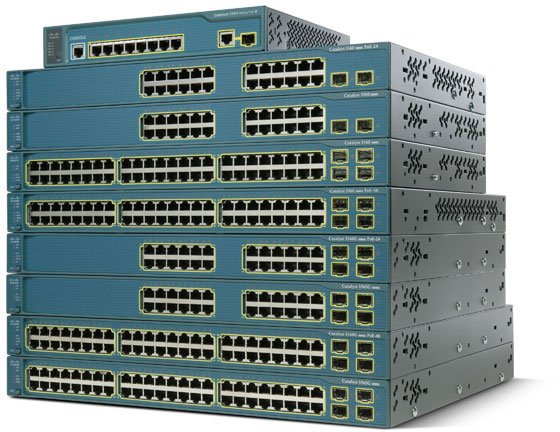

The Cisco Catalyst 3560 Series Switch is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, the Catalyst 3560 Series Switch helps you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. You can maintain the simplicity of traditional LAN switching and still deploy networkwide intelligent services such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management and high-performance IP routing.

General Information

  • Product Type: Layer 3 Switch
  • Product Series: 3560
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Model: 3560V2-48PS
  • Product Name: Catalyst 3560V2-48PS Layer 3 Switch
  • Product Line: Catalyst

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.7"
  • Width: 17.5"
  • Depth: 11.6"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 11.02 lb

Interfaces/Ports

  • Number of PoE (RJ-45) Ports: 48
  • Total Number of Network Ports: 48
  • Port/Expansion Slot Details:
    • 48 x Fast Ethernet Network
    • 4 x Gigabit Ethernet Expansion Slot

Other

  • Additional Information:
    • Enhanced Image
    • Forwarding bandwidth: 32 Gbps
    • 370W available for PoE, allowing full 15.4W for up to 24 ports
    • Cisco Hot Standby Router Protocol (HSRP)
    • Unidirectional Link Detection Protocol (UDLD)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • Equal-cost routing (ECR) provides load balancing and redundancy
    • Basic IP unicast routing protocols (static, RIPv1, RIPv2, and EIGRP-Stub)
    • IPv6 unicast routing capability (static, RIP, OSPF, and EIGRP)
    • Security Features:
    • IEEE 802.1x
    • Multi-authentication (MultiAuth)
    • Flexible authentication (FlexAuth)
    • Access Control Lists
    • SSHv2

Management & Protocols

  • Manageable: Yes
  • Management:
    • Web Based Management
    • Command Line Interface
    • Telnet
    • SNMP v1/2c/3
    • RMON 1/2/3/9
    • MIB-II
    • DHCP
    • IEEE 802.1p QoS
    • IEEE 802.1q VLAN
    • Cisco Group Management Protocol
    • Cisco Network Assistant
    • CiscoWorks LAN Management Solution (LMS)

Power Description

  • PoE (RJ-45) Port: Yes
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Redundant Power Supply: Yes
  • Power Source: Power Supply

I/O Expansions

  • Number of Total Expansion Slots: 4
  • Expansion Slot Type: SFP
  • Number of SFP Slots: 4

Media & Performance

  • Ethernet Technology: Fast Ethernet
  • Network Technology: 10/100Base-TX

Network & Communication

  • Layer Supported: 3

Memory

  • Flash Memory: 32 MB

Full specifications (PDF)
