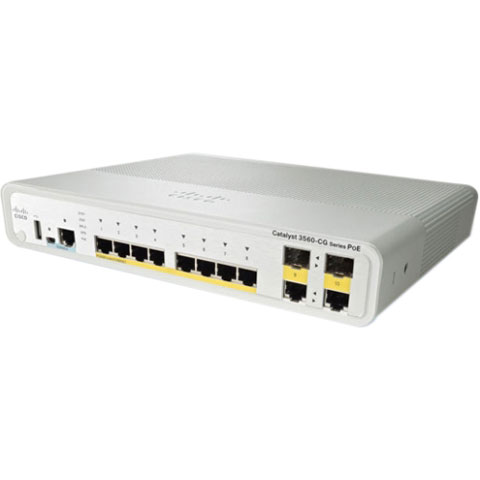

Cisco WS-C3560C-12PC-S


0.0

(No reviews)

Be the first to

Write a Review
Cisco Catalyst3560Series - Catalyst 3560C Switch 12 FEPOE 2 x Dual Uplink, IP Base

The Cisco Catalyst 3560 Series Switch is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, the Catalyst 3560 Series Switch helps you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. You can maintain the simplicity of traditional LAN switching and still deploy networkwide intelligent services such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management and high-performance IP routing.

General Information

  • Product Type: Ethernet Switch
  • Product Series: 3560-C
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Model: WS-C3560C-12PC-S
  • Product Name: Catalyst WS-C3560C-12PC-S Ethernet Switch
  • Product Line: Catalyst

Physical Characteristics

  • Height: 1.8"
  • Width: 10.6"
  • Depth: 9.4"
  • Form Factor:
    • Desktop
    • Wall Mountable
    • Rack-mountable
  • Weight (Approximate): 4.10 lb

Interfaces/Ports

  • Number of PoE (RJ-45) Ports: 12
  • Total Number of Network Ports: 12
  • Port/Expansion Slot Details:
    • 12 x Fast Ethernet Network
    • 2 x Gigabit Ethernet Uplink
    • 2 x Gigabit Ethernet Expansion Slot
  • Token Ring Port: No
  • LRE Port: No
  • USB: Yes
  • Uplink Port: Yes

Management & Protocols

  • Manageable: Yes
  • Management:
    • DHCP
    • QoS
    • VLAN
    • RMON 1,2,3,9
    • CiscoWorks LMS
    • SNMP v1,v2c,v3
    • Syslog
    • Telnet
    • MIB
    • Web-based Management
    • CLI

Media & Performance

  • Ethernet Technology:
    • Gigabit Ethernet
    • Fast Ethernet
  • Media Type Supported: Twisted Pair
  • Network Technology:
    • 10/100/1000Base-T
    • 10/100Base-TX

Power Description

  • PoE (RJ-45) Port: No
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: Power Supply

I/O Expansions

  • Number of Total Expansion Slots: 2
  • Expansion Slot Type: SFP
  • Number of SFP Slots: 2
  • Shared SFP Slot: Yes

Memory

  • Memory Technology: DRAM
  • Flash Memory: 64 MB
  • Standard Memory: 128 MB

Warranty

  • Limited Warranty: Lifetime

Network & Communication

  • Layer Supported: 2

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Cisco Catalyst 3560 Series Switch
Protect Your Product

The Cisco WS-C3560C-12PC-S is also known as CSC-WSC3560C12PCS or WSC3560C12PCS .
