Cisco WS-C2960S-48TS-S Data Networking

Part Number: WS-C2960S-48TS-S
Model: Catalyst 2960 Series Switch
to get Free Ground Shipping on your order.
$3,390.23

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
48
Uplink Port
No
Modular
Yes
Stack Port
No

Product Description:

  Catalyst 2960 Switch (48 GigE, 2 x SFP LAN Lite)

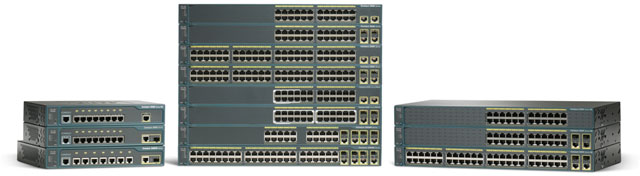

Cisco Catalyst 2960 Series Switch Data Networking Model Overview

The Cisco Catalyst 2960 Series Switch Intelligent Ethernet Switches enable entry-level enterprise, medium-sized, and branch office networks to provide enhanced LAN services. This family of fixed-configuration, standalone devices provide desktop 10/100 Fast Ethernet and 10/100/1000 Gigabit Ethernet connectivity. The Catalyst 2960 Series Switch offers connectivity: Fast Ethernet and Gigabit Ethernet connectivity in 8-port, 24-port, and 48-port configurations, power over Ethernet: 24 full PoE port and 24-port (PoE supported on 8 ports) configurations, integrated security, including network admission control (NAC), advanced quality of service (QoS) and resiliency, intelligent services for the network edge and a Limited Lifetime Warranty.
Cisco WS-C2960S-48TS-S Data Networking Overview

The Cisco Catalyst 2960-X Series provides a direct replacement for each Catalyst 2960-S Series Gigabit Ethernet model, at the same price. The Catalyst 2960-X provides better architecture, features, and performance than the 2960-S, doubling the feature set.

Customers for the Catalyst 2960-SF Fast Ethernet switches should also consider moving to the 2960-X switches, which provide the features of the Catalyst 2960-SF and more, including PoE Plus (PoE+), improved IPv6 performance, and optional StackWise stacking. The 2960-X PoE models have a premium of approximately 20 to 25 percent over the 2960-SF Series.

Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
No
Modular:
Yes
Stack Port:
No
Number of Network (RJ-45) Ports:
48
Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
I/O Expansions
Total Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • IEEE 802.1p QoS
  • DHCP
  • IEEE 802.1Q VLAN
  • RMON
  • CLI
  • CiscoWorks LAN Management Solution
  • SNMPv3
  • Syslog
Memory
Standard Memory:
128 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.8"
Width:
17.7"
Depth:
11.8"
Weight (Approximate):
10.50 lb
Warranty
Additional Warranty Information:
  • Product does not ship from original manufacturer
  • Product may not be eligible for original manufacturer warranty, rebates or programs
  • Product condition subject to availability
  • Three years direct replacement warranty provided by Ingram Micro
  • Product ships from IMSourcing facility within 2-3 days or from stock
  • Product May ship in non-standard packaging
  • All returns processed directly from IMSourcing
  • Where applicable, IM indicates an Ingram Micro certified pre-owned product
Item Numbers
GTIN: 0172302747263
UPC: 172302747263
EAN: 0172302747263
UNSPSC: 43222612
