Cisco WS-C2960S-24TS-S Data Networking

Cisco Catalyst 2960 Series Switch - Catalyst 2960 Switch (24 GigE, 2 x 2 x SFP LAN Lite)
  • Effectively increases available bandwidth on your network
  • Features 24 networking ports to establish large network
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • 128 MB memory seamlessly handles multiple connections together
Read More
$1,956.69
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

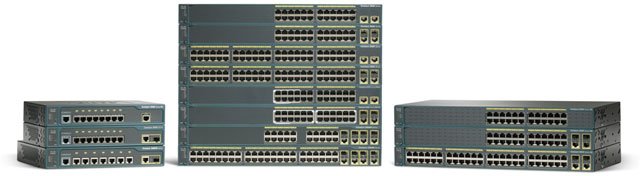

Cisco Catalyst 2960 Series Switch Data Networking Model Overview
The Cisco Catalyst 2960 Series Switch Intelligent Ethernet Switches enable entry-level enterprise, medium-sized, and branch office networks to provide enhanced LAN services. This family of fixed-configuration, standalone devices provide desktop 10/100 Fast Ethernet and 10/100/1000 Gigabit Ethernet connectivity. The Catalyst 2960 Series Switch offers connectivity: Fast Ethernet and Gigabit Ethernet connectivity in 8-port, 24-port, and 48-port configurations, power over Ethernet: 24 full PoE port and 24-port (PoE supported on 8 ports) configurations, integrated security, including network admission control (NAC), advanced quality of service (QoS) and resiliency, intelligent services for the network edge and a Limited Lifetime Warranty.
Cisco WS-C2960S-24TS-S Data Networking Overview

The Cisco Catalyst 2960-X Series provides a direct replacement for each Catalyst 2960-S Series Gigabit Ethernet model, at the same price. The Catalyst 2960-X provides better architecture, features, and performance than the 2960-S, doubling the feature set.

Customers for the Catalyst 2960-SF Fast Ethernet switches should also consider moving to the 2960-X switches, which provide the features of the Catalyst 2960-SF and more, including PoE Plus (PoE+), improved IPv6 performance, and optional StackWise stacking. The 2960-X PoE models have a premium of approximately 20 to 25 percent over the 2960-SF Series.

Interfaces/Ports
Total Number of Network Ports:
24
Stack Port:
No
Number of Network (RJ-45) Ports:
24
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • DHCP
  • QoS
  • VLAN
  • SNMP v1, v2, v3
  • Syslog
  • CLI
  • RMON
  • CiscoWorks LAN Management Solution
Memory
Standard Memory:
128 MB
Memory Technology:
DRAM
Flash Memory:
64 MB
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.8"
Width:
17.5"
Depth:
11.8"
Weight (Approximate):
10 lb
Warranty
Additional Warranty Information:
  • Product does not ship from original manufacturer
  • Product may not be eligible for original manufacturer warranty, rebates or programs
  • Product condition subject to availability
  • Three years direct replacement warranty provided by Ingram Micro
  • Product ships from IMSourcing facility within 2-3 days or from stock
  • Product May ship in non-standard packaging
  • All returns processed directly from IMSourcing
  • Where applicable, IM indicates an Ingram Micro certified pre-owned product
Item Numbers
GTIN: 0088021468481, 0666667525845, 9865745930613, 9865745930712
UPC: 088021468481, 666667525845
EAN: 0088021468481, 0666667525845, 9865745930613, 9865745930712
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco WS-C2960S-24TS-S Data Networking is also known as CSC-WSC2960S24TSS
