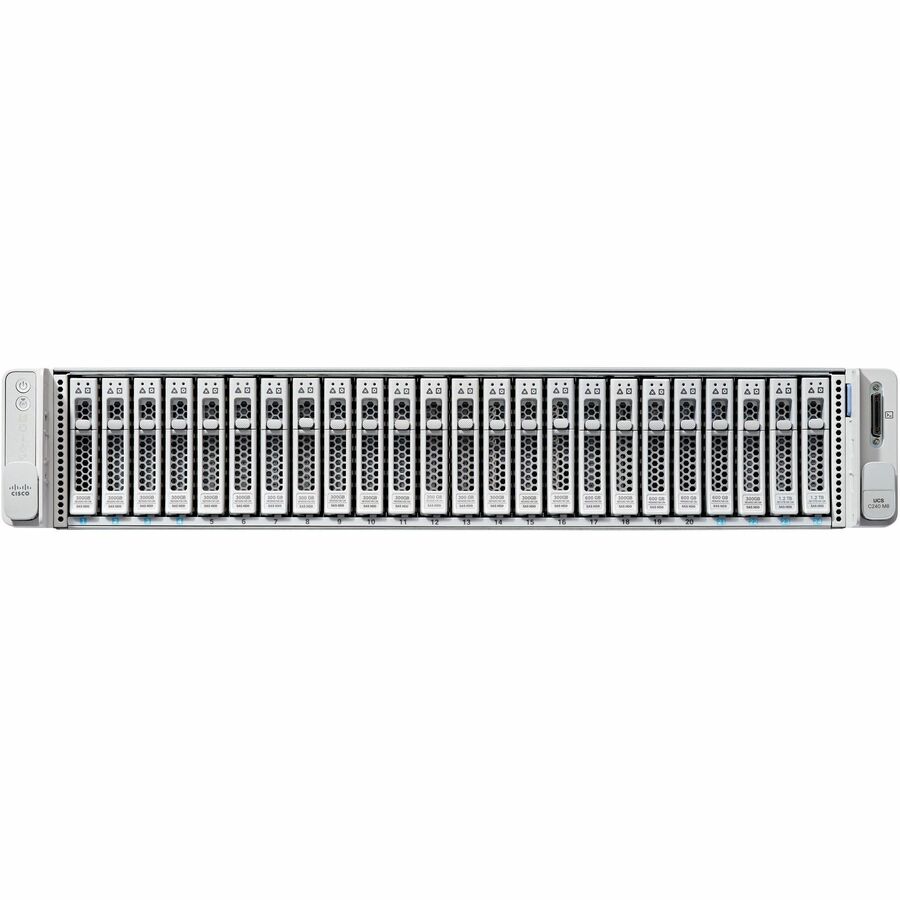

Cisco UCSC-C240-M8SX Server

Part Number: UCSC-C240-M8SX
Model:
Add to My Shopping List Add to Compare
$5,994.66
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Processor Supported
Xeon BronzeXeon GoldXeon PlatinumXeon Silver
64-bit Processing
Yes
Chipset Manufacturer
Intel

Product Description:

  Server, Cisco, Cisco Barebone System, 2U Rack-mountable, 2 x Processor Support, Intel Chip, 8 TB DDR5 SDRAM DDR5-6400/PC5-51200 Maximum RAM Support, 32 Total Memory Slots, SD, 24Gb/s SAS RAID Supported Controller, Matrox 8 MB Graphic(s), 24 2.5" Bay(s), Network (RJ-45), 2 M.2 Interface(s), Processor Support (Xeon Bronze, Xeon Gold, Xeon Platinum, Xeon Silver), Gigabit Ethernet, 2 USB 3.0 Port(s)
Explore all Cisco Parts Accessories
Add to Quote
Cisco UCSC-C240-M8SX Server
Cisco UCSC-C240-M8SX Server
Cisco UCSC-C240-M8SX Server Cisco UCSC-C240-M8SX Server

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco UCSC-C240-M8SX Server Overview

The Cisco UCS C240 M8 SFF Rack Server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the Intel® Xeon® 6 Scalable Processors, 16 DIMM slots per CPU for DDR5-6400 Memory DIMMs with DIMM capacity points up to 256GB.

Processor
Number of Processors Supported:
2
Processor Supported:
  • Xeon Bronze
  • Xeon Gold
  • Xeon Platinum
  • Xeon Silver
64-bit Processing:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Maximum Memory Supported:
8 TB
Memory Technology:
DDR5 SDRAM
Memory Standard:
DDR5-6400/PC5-51200
Total Number of Memory Slots:
32
Memory Card Supported:
SD
Storage
Supported Storage Drive Interfaces:
  • Serial ATA III
  • SAS
  • PCI Express NVMe
Supported Storage Drive Types:
  • SSD
  • HDD
Controllers
Controller Type:
24Gb/s SAS
RAID Supported:
Yes
Display & Graphics
Graphics Controller Manufacturer:
Matrox
Graphics Memory Capacity:
8 MB
Graphics Memory Technology:
DDR SDRAM
Graphics Memory Accessibility:
Dedicated
Network & Communication
Ethernet Technology:
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays:
24
Number of 2.5" Bays:
24
Number of M.2 Interfaces:
2
Interfaces/Ports
Total Number of USB Ports:
2
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
Number of VGA Ports:
1
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
2U
Height:
3.4"
Width:
16.9"
Depth:
30"
Weight (Approximate):
72.14 lb
Item Numbers
GTIN: 0889728600194
UPC: 889728600194
EAN: 0889728600194
UNSPSC: 43211520
The Cisco UCSC-C240-M8SX Server is also known as CSC-UCSCC240M8SX
