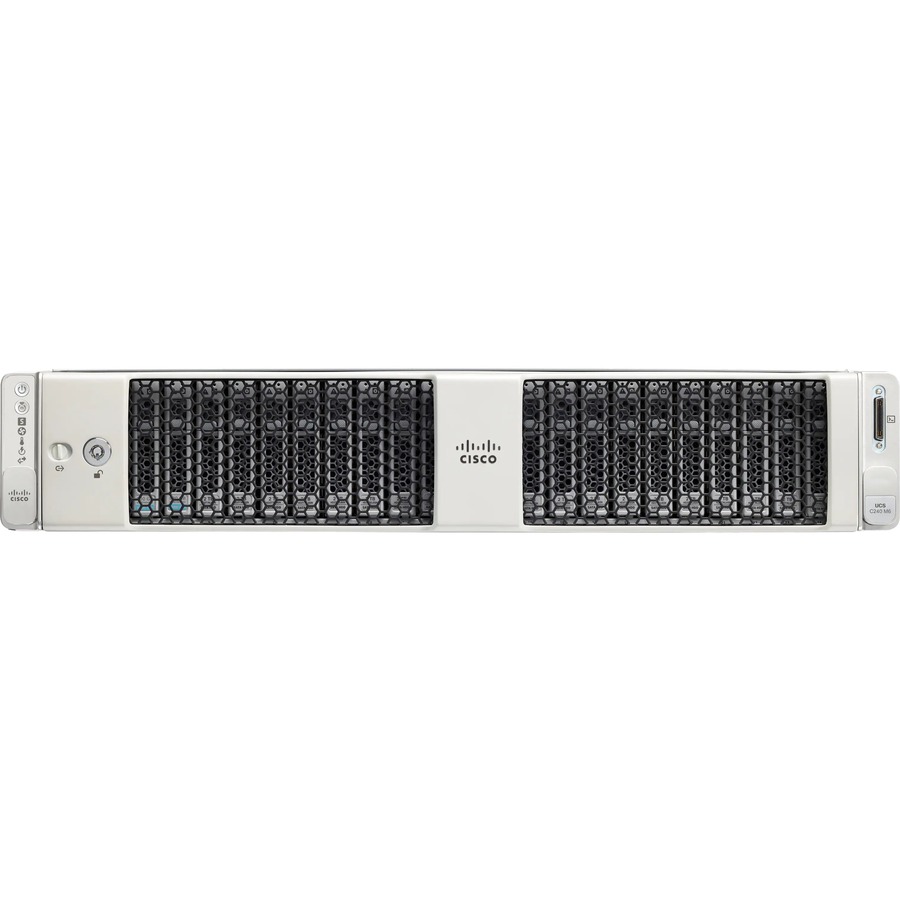

Cisco UCSC-C240-M6SX Server

Part Number: UCSC-C240-M6SX
Model:
Add to My Shopping List Add to Compare
$4,665.85
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Processor Supported
Xeon BronzeXeon SilverXeon GoldXeon Platinum
64-bit Processing
Yes
Chipset Manufacturer
Intel

Product Description:

  Server, Cisco, Cisco UCSC-C240-M6SX Barebone System, 2U Rack-mountable, 2 x Processor Support, Intel C621A Chip, 8 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support, 32 Total Memory Slots, 12Gb/s SAS RAID Supported, Serial ATA/600 Controller 8 MB Graphic(s), Processor Support (Xeon Bronze, Xeon Silver, Xeon Gold, Xeon Platinum), 10 Gigabit Ethernet, Gigabit Ethernet, Intel Optane Memory Ready, 2 USB 3.0 Port(s), 3 Year
Explore all Cisco Parts Accessories
Add to Quote
Cisco UCSC-C240-M6SX Server
Cisco UCSC-C240-M6SX Server
Cisco UCSC-C240-M6SX Server Cisco UCSC-C240-M6SX Server

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco UCSC-C240-M6SX Server Overview
The UCS C240 M6 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 256 GB. The maximum memory capacity for 2 CPUs is listed here:
  • 8 TB (32 x 256 GB DDR4 DIMMs), or
  • 12 TB (16 x 256 GB DDR4 DIMMs1 and 16 x 512 GB Intel® Optane™ Persistent Memory Modules (PMEMs)).
Processor
Number of Processors Supported:
2
Processor Supported:
  • Xeon Bronze
  • Xeon Silver
  • Xeon Gold
  • Xeon Platinum
64-bit Processing:
Yes
Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C621A
Memory
Maximum Memory Supported:
8 TB
Memory Technology:
DDR4 SDRAM
Memory Standard:
DDR4-3200/PC4-25600
Total Number of Memory Slots:
32
Intel Optane Memory Ready:
Yes
Storage
Supported Storage Drive Interfaces:
  • SAS-3
  • Serial ATA III
Controllers
Controller Type:
  • 12Gb/s SAS
  • Serial ATA/600
RAID Supported:
Yes
Display & Graphics
Graphics Memory Capacity:
8 MB
Network & Communication
Ethernet Technology:
  • 10 Gigabit Ethernet
  • Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays:
24
Interfaces/Ports
Total Number of USB Ports:
2
Number of USB 3.0 Ports:
2
Number of VGA Ports:
1
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
2U
Height:
3.4"
Width:
16.9"
Depth:
30"
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0889728256278
UPC: 889728256278
EAN: 0889728256278
UNSPSC: 43211520
The Cisco UCSC-C240-M6SX Server is also known as CSC-UCSCC240M6SX
