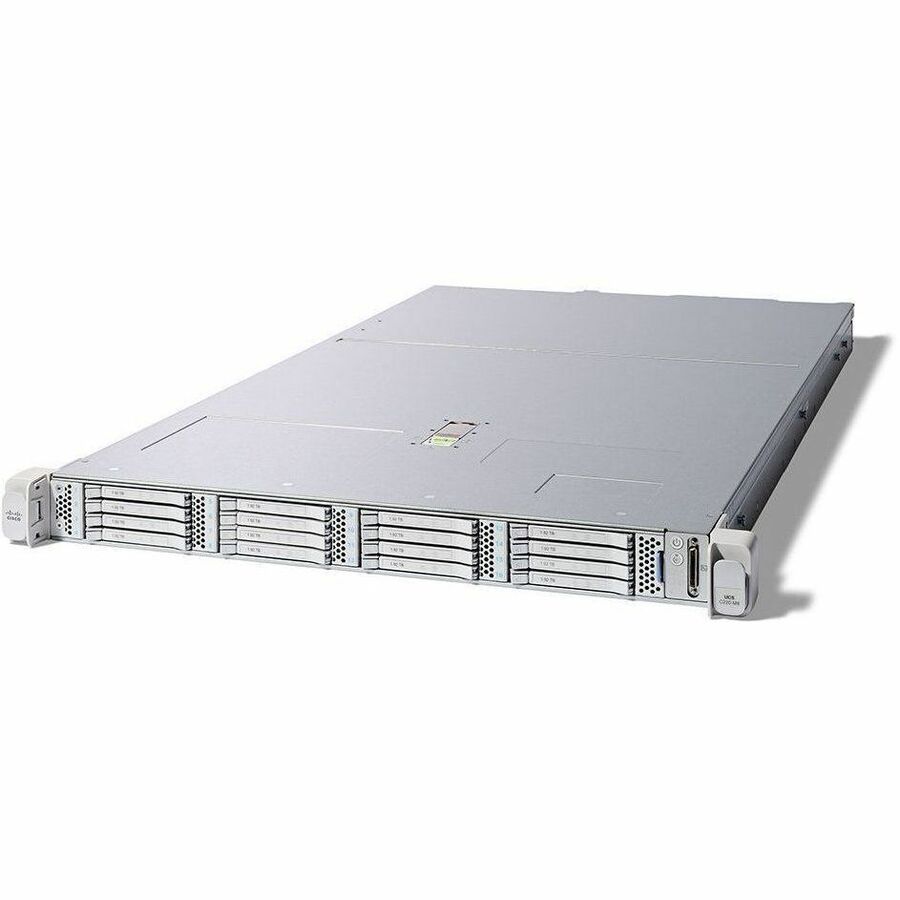

Cisco UCSC-C220-M8S Server

Part Number: UCSC-C220-M8S
Model:
Add to My Shopping List Add to Compare
$5,220.22
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Number of Processors Supported
2
Processor Supported
Xeon GoldXeon SilverXeon BronzeXeon Platinum
64-bit Processing
Yes
Chipset Manufacturer
Intel

Product Description:

  Server, Cisco, Cisco Barebone System, 1U Rack-mountable, 2 x Processor Support, Intel Chip, 4 TB DDR5 SDRAM DDR5-6400/PC5-51200 Maximum RAM Support, 32 Total Memory Slots, Serial ATA RAID Supported, Serial Attached SCSI (SAS), NVMe Controller, Matrox 8 MB Graphic(s), 10 2.5" Bay(s), Network (RJ-45), Processor Support (Xeon Gold, Xeon Silver, Xeon Bronze, Xeon Platinum), Gigabit Ethernet, Windows Server 2022 Standard, Windows Server 2022 Datacenter, Red Hat Enterprise Linux, SuSE Linux Enterpri
Explore all Cisco Parts Accessories
Add to Quote
Cisco UCSC-C220-M8S Server
Cisco UCSC-C220-M8S Server
Cisco UCSC-C220-M8S Server Cisco UCSC-C220-M8S Server

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco UCSC-C220-M8S Server Overview

The Cisco UCS C220 M8 SFF Rack Server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the Intel® Xeon® 6 Scalable Processors, 16 DIMM slots per CPU for DDR5-6400 Memory DIMMs with DIMM capacity points up to 128GB.

The Cisco UCS C220 M8 SFF Rack Server harnesses the power of the latest Intel® Xeon® Scalable Processors and offers the following:

CPU:

  • Up to 2x Intel® Xeon® 6 Scalable Processors with up to 86 cores per processor

Memory:

  • Up to 8TB with 32 x 256GB DDR5-6400 DIMMs, in a 2-socket configuration with Intel® Xeon® 6 Scalable Processors.

The server provides an internal slot for one of the following:

  • Cisco 24G Tri-mode RAID controller with cache backup to control SAS/SATA/NVMe drives or
  • Cisco 24G Tri-mode Pass-through HBA to control SAS/SATA/NVMe

mLOM: The UCS C220 M8 SFF Rack Server has a single integrated 1GBE management port. A modular LAN on motherboard (mLOM)/OCP 3.0 slot provides various connectivity options from 10GbE to 200GbE.

Processor
Number of Processors Supported:
2
Processor Supported:
  • Xeon Gold
  • Xeon Silver
  • Xeon Bronze
  • Xeon Platinum
64-bit Processing:
Yes
Chipset
Chipset Manufacturer:
Intel
Memory
Maximum Memory Supported:
4 TB
Memory Technology:
DDR5 SDRAM
Memory Standard:
DDR5-6400/PC5-51200
Total Number of Memory Slots:
32
Storage
Supported Storage Drive Interfaces:
  • Serial ATA
  • SAS
  • PCI Express
Supported Storage Drive Types:
SSD
Controllers
Controller Type:
  • Serial ATA
  • Serial Attached SCSI (SAS)
  • NVMe
RAID Supported:
Yes
Display & Graphics
Graphics Controller Manufacturer:
Matrox
Graphics Memory Capacity:
8 MB
Network & Communication
Ethernet Technology:
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays:
10
Number of 2.5" Bays:
10
Total Number of Expansion Slots:
3
Number of PCI Express x16 Slots:
3
Interfaces/Ports
Total Number of USB Ports:
2
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
Number of VGA Ports:
1
Operating System
Operating System Supported:
  • Windows Server 2022 Standard
  • Windows Server 2022 Datacenter
  • Red Hat Enterprise Linux
  • SuSE Linux Enterprise Server
  • Windows Server 2025
  • Windows Server 2025 Datacenter
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
1.7"
Width:
16.9"
Depth:
30"
Weight (Approximate):
52.03 lb
Item Numbers
GTIN: 0889728600101
UPC: 889728600101
EAN: 0889728600101
UNSPSC: 43211520
The Cisco UCSC-C220-M8S Server is also known as CSC-UCSCC220M8S
