Wi-Fi Generation:
Wi-Fi 4

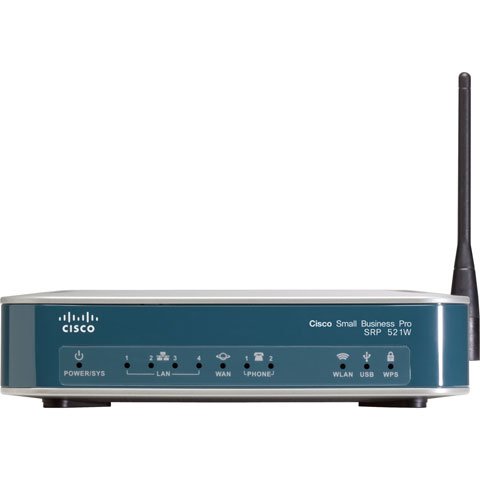

Cisco SRP521W-U-A-K9 Products
Part Number:
SRP521W-U-A-K9
Model:
Accessories
Technical Information
Wireless Specifications
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Total Number of Antennas:
1
Antenna Gain:
1.8 dBi
Total Wireless Transmission Speed:
6.75 MB/s
Wireless Security:
- WPA2 Enterprise
- WPA2 Personal
- WPA Enterprise
- WPA Personal
- IEEE 802.11i
- WPS
- WEP
Features:
Quality of Service (QoS)
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
4
Network (RJ-11):
Yes
Number of Network (RJ-11) Ports:
3
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Fast Ethernet
Management & Protocols
Management:
- Web-Based Management
- SNMP v1, v2, v3c
- Syslog
- DHCP
- VLAN
Security Features:
- Stateful Inspection Routing Firewall
- IPsec VPN Pass-Through
- MAC Address Cloning
- NAT Transparency
- Keyword Filtering
- Port Forwarding
- DoS Prevention
- URL Filtering
- PPTP
- 3DES
- L2TP
- DES
- AES
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
AC Supply
Physical Characteristics
Form Factor:
Desktop
Miscellaneous
Certifications & Standards:
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
Safety:
- IEC 60950-1
- AS/NZS 60950.1
- CAN/CSA-C22.2 No. 60950-1
- EN 60950-1
- UL 60950-1
Immunity:
- EN 55024
- EN 300-386
- EN 61000-6-2
- EN 50082-1
- EN 55024 (CISPR 24)
EMC:
- FCC Part 15, ICES-003
- EN55022, CISPR 22
- EN 300-386
- EN 61000-3-2
- EN 61000-3-3
- EN 50082-1
- EN 55024, CISPR 24
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-8
- EN 61000-4-11
RF EMC:
- CFR47 part15.247
- RSS-210 Rev 5
- ETSI EN 300.328.1
- ETSI EN301.489.1&.17
- AS./NZS 4268
TELCOM:
- TIA-968
- CS-03
- ACIF S002
- ACIF S003
- ACIF S043
- ANZ PTC200
- ANZ PTC220
- ANZ PTC273
- TBR21
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0882658466229
UPC:
882658466229
EAN:
0882658466229
UNSPSC:
43222609
The Cisco SRP521W-U-A-K9 Products is also known as
CSC-SRP521WUAK9
