You've just added this product to the cart:

Cisco PWR-C45-1000AC=

Cisco Catalyst 4500 Series Switch - Catalyst 4500 1000W AC Power supply (Data Only - Spare)
$1,256.82
Temporarily out of stock; available to order

Full specifications (PDF)

Secure unified communications

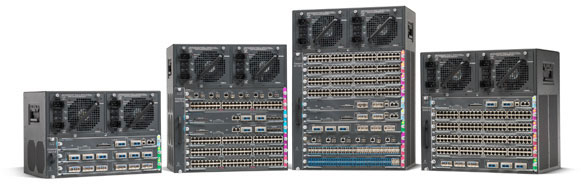

The Cisco Catalyst 4500 Series Switch is a midrange modular platform for unified communications. It is designed for high resiliency, simplified operations, and maximum investment protection with backward and forward compatibility across generations. The Cisco Catalyst 4500 Series Switch extends a comprehensive set of intelligent network services to the network edge (the wiring closet), helping businesses of all sizes deploy secure, resilient, and scalable unified data, voice, and video networks.

General Information

  • Product Type: Proprietary Power Supply
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Name: Catalyst 4500 Series 1000 Watt Power Supply

Physical Characteristics

  • Hot Swappable Power Supply: Yes

Other

  • Certifications & Standards:
    • UL 60950
    • CAN/CSA-C22.2 No. 60950
    • EN 60950
    • IEC 60950
    • TS 001
    • AS/NZS 3260<br><br> Electromagnetic Compatibility (EMC):
    • FCC Part 15 (CFR 47) Class A
    • ICES-003 Class A
    • EN55022 Class A
    • CISPR22 Class A
    • AS/NZS 3548 Class A
    • VCCI Class A
    • EN 55022
    • EN 55024
    • EN 61000-6-1
    • EN 50082-1
    • EN 61000-3-2
    • EN 61000-3-3
    • ETS 300 386<br><br> Industry EMC, Safety, and Environmental Standards:
    • GR-63-Core Network Equipment Building Standards (NEBS) Level 3
    • GR-1089-Core Level 3
    • ETS 300 019 Storage Class 1.1
    • ETS 300 019 Transportation Class 2.3 (pending)
    • ETS 300 019 Stationary Use Class 3.1
    • ETS 300 386
  • Compatibility: Cisco Catalyst 4500 Series
  • System Requirements:
    • Cisco IOS Software Version 12.1(12c)EW<br><br> Minimum CATOS software requirement:
    • Cisco CatOS Software Version 7.4(1)
  • Additional Information:
    • Purpose: data
    • Integrated In-line Power: No (Data Only)
    • KVA rating (Maximum): 1.32 KVA
    • Output Power Redundant Mode (Data): 1000W + 40W
    • Output Power Combined Mode (Data): 1667 Watts
    • Heat Dissipation: 943 BTU/Hr
    • Hot Swappable
    • Simple Network Management Protocol (SNMP) Management Information Base (MIB) supported

Power Description

  • Input Voltage: 200 V AC
  • Output Power: 1 kW
  • Input Voltage Range: 100 V AC to 200 V AC
  • Output Voltage: 12 V DC

Controls/Indicators

  • Status Indicators:
    • Good
    • Fail

Warranty

  • Limited Warranty: 90 Day
Protect Your Product

Full specifications (PDF)

Brand Cisco
Model Catalyst 4500 Series Switch


The Cisco PWR-C45-1000AC= is also known as CSC-PWRC451000AC= or PWRC451000AC= .
