Features:
- DHCP Snooping
- Fanless
- Remote/Cloud Management

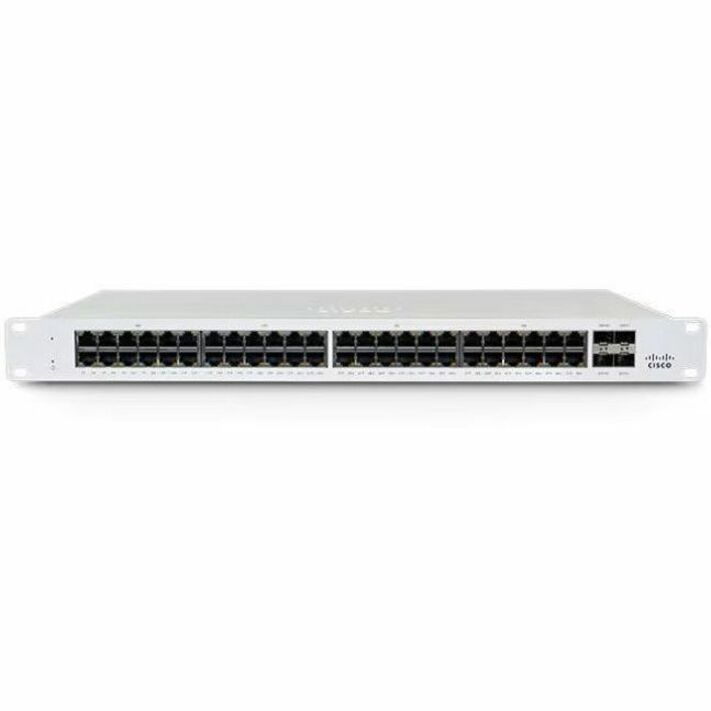

Cisco MS130-48X Switches
Part Number:
MS130-48X
Model:
Cisco Parts Accessory Model Overview
Products and parts from Cisco.
Cisco MS130-48X Switches Overview
Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
Technical Information
Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 40 x Gigabit Ethernet PoE
- 8 x 2.5 Gigabit Ethernet PoE
- 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 1000Base-T
- 2.5GBase-T
- 10GBase-X
Maximum Data Transfer Rate:
1.25 GB/s
I/O Expansions
Total Number of Expansion Slots:
4
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
2
Networking Standards:
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3bt
Management & Protocols
Manageable:
Yes
Reliability
MTBF:
396536 Hour
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
740 W
Input Voltage:
- 120 V AC
- 230 V AC
Frequency:
- 50 Hz
- 60 Hz
Power Source:
- AC
- Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.3"
Depth:
13.4"
Weight (Approximate):
12.59 lb
Miscellaneous
Application/Usage:
- Network
- Branch Office
- Campus
- Infrastructure
- Server
- Enterprise
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
43222612
The Cisco MS130-48X Switches is also known as
CSC-MS13048X
