Features:
DHCP Snooping

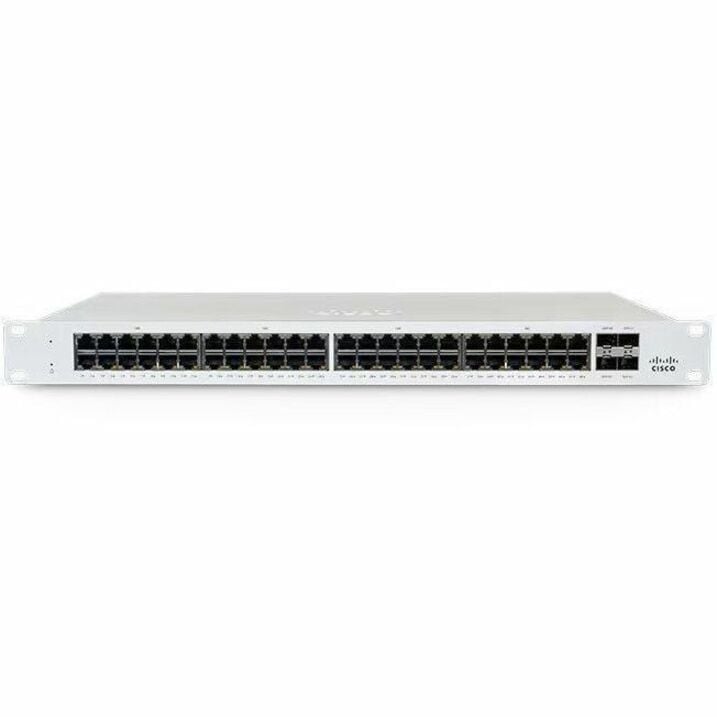

Cisco MS130-48P Switches
Part Number:
MS130-48P
Model:
Cisco Parts Accessory Model Overview
Products and parts from Cisco.
Cisco MS130-48P Switches Overview
Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
Technical Information
Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Netowrk
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 1000Base-X
Maximum Data Transfer Rate:
128 MB/s
I/O Expansions
Total Number of Expansion Slots:
4
Expansion Slot Type:
SFP
Number of SFP Slots:
4
Network & Communication
Layer Supported:
2
Networking Standards:
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3bt
Management & Protocols
Manageable:
Yes
Reliability
MTBF:
309196 Hour
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
740 W
Input Voltage:
- 120 V AC
- 230 V AC
Frequency:
- 50 Hz
- 60 Hz
Power Source:
- Power Supply
- AC
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.3"
Depth:
13.4"
Weight (Approximate):
12.13 lb
Miscellaneous
Application/Usage:
- Campus
- Infrastructure
- Network
- Server
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
43222612
The Cisco MS130-48P Switches is also known as
CSC-MS13048P
