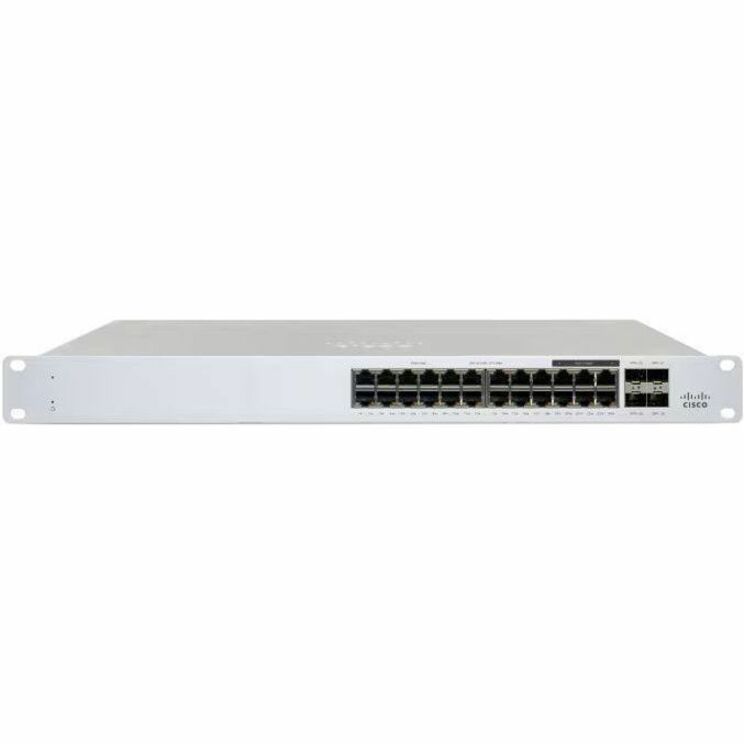

Cisco MS130-24P Switches

Part Number: MS130-24P
Model:
Add to My Shopping List Add to Compare
$2,449.51
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Features
Zero-Touch Provisioning (ZTP)DHCP RelayDHCP SnoopingAccess Control ListAutomatic Firmware UpgradeVLAN SegmentationBuilt-in Fan
Total Number of Network Ports
24
Uplink Port
Yes
Network (RJ-45)
Yes

Product Description:

  Switches, Cisco, Cisco Meraki MS130-24P Ethernet Switch, 24 Ports, Manageable, Gigabit Ethernet, 1000Base-T, 1000Base-X, 2 Layer Supported, 4 SFP Slots, 406 W Power Consumption, 370 W PoE Budget, Twisted Pair, Optical Fiber, PoE Ports, White, 1U, Rack-mountable, Lifetime Limited Warranty
Explore all Cisco Parts Accessories
Add to Quote
Cisco MS130-24P Switches
Cisco MS130-24P Switches
Cisco MS130-24P Switches Cisco MS130-24P Switches

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco MS130-24P Switches Overview

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.

With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.

Technical Information
Features:
  • Zero-Touch Provisioning (ZTP)
  • DHCP Relay
  • DHCP Snooping
  • Access Control List
  • Automatic Firmware Upgrade
  • VLAN Segmentation
  • Built-in Fan
Interfaces/Ports
Total Number of Network Ports:
24
Uplink Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet PoE+
  • 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 1000Base-T
  • 1000Base-X
Maximum Data Transfer Rate:
128 MB/s
I/O Expansions
Total Number of Expansion Slots:
4
Expansion Slot Type:
SFP
Number of SFP Slots:
4
Network & Communication
Layer Supported:
2
Networking Standards:
  • IEEE 802.1Q
  • IEEE 802.1x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Management & Protocols
Manageable:
Yes
Reliability
MTBF:
768152 Hour
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
370 W
Input Voltage:
  • 120 V AC
  • 230 V AC
Frequency:
  • 50 Hz
  • 60 Hz
Power Source:
Power Supply
Power Consumption:
406 W
Physical Characteristics
Color Family:
White
Product Color:
White
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
10"
Depth:
17.3"
Weight (Approximate):
8.91 lb
Miscellaneous
Application/Usage:
  • Network
  • Branch Office
  • Campus
  • Infrastructure
Energy Star:
No
TCO Certified:
No
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 43222612
The Cisco MS130-24P Switches is also known as CSC-MS13024P
