Application/Usage:
Data Networking

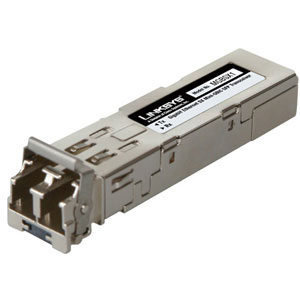

Cisco MGBSX1 Network Transceivers & SFP Modules
Part Number:
MGBSX1
Model:
Accessories
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC 1000Base-SX
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Maximum Distance Supported:
0.55 km
Physical Characteristics
Weight (Approximate):
0.04 lb
Miscellaneous
Additional Information:
- Transmitter Spec: Power: -9.5 to -4 dBm
- Reciever Spec: Sensitivity: -20 to -17dBm
- Input Power: -20 to -17 dBm
- Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm
- Wavelength: 850 nm (850nm TYP., 830-860nm) MMF
Modular Bandwidth for MMF:
- 62.5/125um MMF at 160 MHz/km, up to 220m
- 62.5/125um MMF at 200 MHz/km, up to 275m
- 50/125um MMF at 400 MHz/km, up to 500m
- 50/125um MMF at 500 MHz/km, up to 550m
Compatibility:
- SR2024 - 24-Port 10/100/1000 Gigabit Switch
- SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
- SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
- SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
- SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
Country of Origin:
China
Item Numbers
GTIN:
0011650931002, 0112840347372, 0633815647742, 0745883558766, 4260039342731, 5691236349107
UPC:
011650931002, 112840347372, 633815647742, 745883558766
EAN:
0011650931002, 0112840347372, 0633815647742, 0745883558766, 4260039342731, 5691236349107
UNSPSC:
43201404
The Cisco MGBSX1 Network Transceivers & SFP Modules is also known as
CSC-MGBSX1
