Cisco Meraki MG41E Wireless Access Points Model Overview

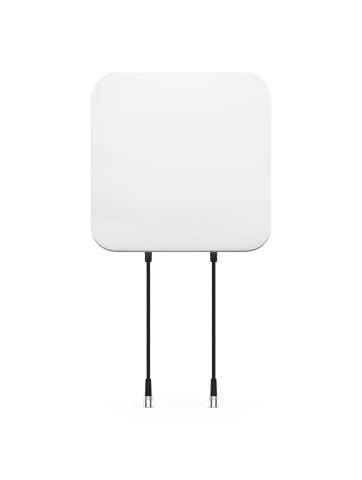

The CISCO Meraki MG41E and MG51E Cellular Patch Antenna (MA-ANT-DUAL-C1) is engineered to enhance your cellular connectivity by providing superior directional gain towards your cellular tower. Ideal for installations that demand elevated performance, this narrow patch antenna increases signal quality and reliability when mounted at an optimal height. Its unique cone-shaped coverage pattern ensures powerful connectivity, especially in scenarios where standard dipole antennas fall short. Get ready to experience improved signal strength and enhanced coverage tailored to your preferred carrier. Key Features
High Directional Gain: Optimized performance towards cellular towers.
Diverse Frequency Support: Covers multiple frequency ranges from 960 MHz to 5925 MHz.
Robust Build: UV-resistant materials suitable for harsh environments.
Easy Installation: Mounts effortlessly onto walls and poles with included hardware.
Impressive Temperature Tolerance: Operates effectively in -40°C to +85°C conditions.
Specifications
Antenna Type: Narrow Patch
Frequency Range:
960 (617-960) MHz
1710-2170 MHz
2200-2690 MHz
3300-4100 MHz
4400-5925 MHz
Peak Gain:
960 MHz: 5.7 dBi
2170 MHz: 7.7 dBi
2690 MHz: 9.7 dBi
4100 MHz: 6.6 dBi
5925 MHz: 6.3 dBi
Polarization: Linear, Horizontal (left) and Vertical (right)
The Meraki MG41, part of the MG cellular gateway family, enables high-speed, always-on reliable network connectivity for business-critical operations and a hybrid workforce through cellular deployments with gigabit primary or backup cellular uplinks. MG41: Superfast, resilient connectivity anywhere
MG41 can instantly provision primary cellular connectivity across thousands of sites at once without waiting on broadband or any change in infrastructure, enabling faster business expansion.
Deliver primary gigabit connectivity with MG41 or pair with Meraki MX and SD-WAN to allow for the optimal bandwidth management needed for today's cloud-first organizations.
With gigabit-level backup cellular connectivity, businesses can rely on MG41 for a consistent experience 24/7/365 to increase business uptime and network resilience.
MG41 allows businesses to confidently deploy primary gigabit cellular at sites where there's no broadband coverage, the carrier coverage is initially unknown, or there's a varying level of availability and network reliability from multiple regional carriers.
The dual SIM gives the flexibility to switch to a better performing carrier network through auto-SIM failover or switch to the other carrier when either of the SIM reaches the data cap.
Product highlights
Built-in CAT 18 connectivity
Supports two separate downstream router connections
Small form factor
PoE or DC powered
IP67 rating
Manageability from the Cisco Meraki dashboard
Self-configuring cellular gateway
Automatic firmware upgrades with scheduling control
Extensive API support
Email, SMS, and mobile push notification alerts
Ping, traceroute, cable testing, and link failure detection with alerting
Remote packet capture
Combined event and configuration change logs with instant search
The Cisco Meraki MG41E-HW Wireless Access Points is also known as
CSC-MG41EHW
