Cisco MA-ANT-3-E5 Motorola Antennas

Part Number: MA-ANT-3-E5
Model: Antennas
$491.95

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Operating Frequency Range
2.400 GHz to 2.500 GHz5.150 GHz to 5.875 GHz
Antenna Gain (Isotropic)
7 dBi
Connector Type
RP-TNC
Height
10.83"

Product Description:

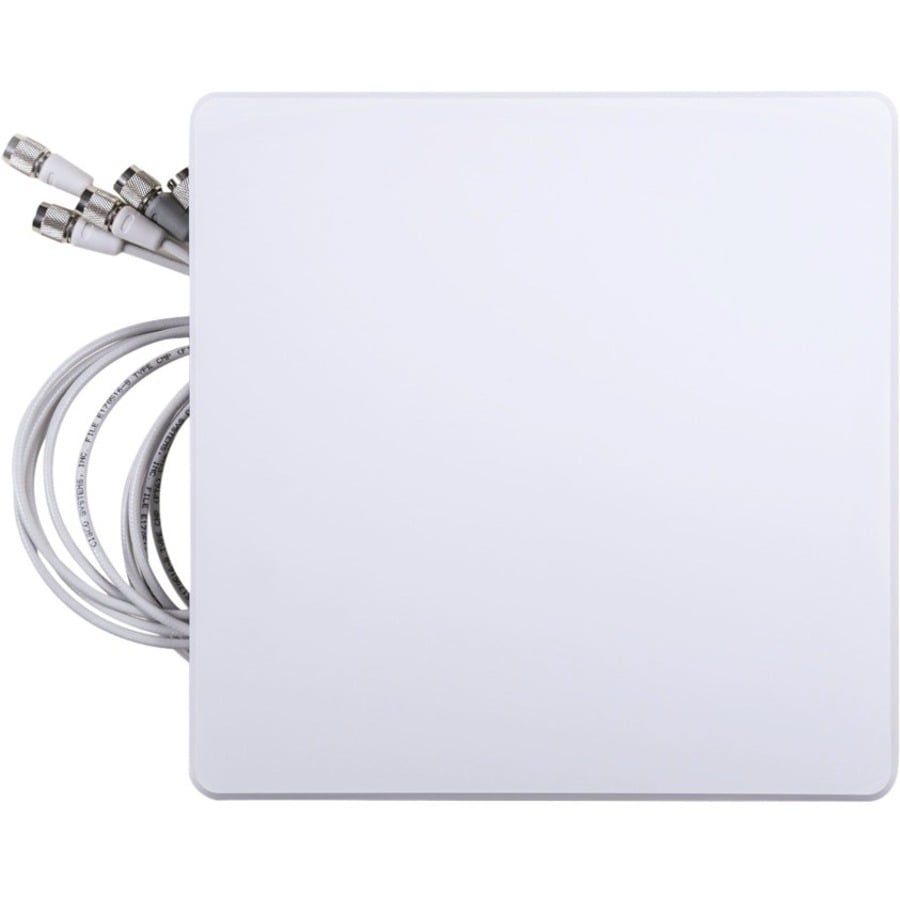

  Meraki Indoor Dual-band Wide Patch Anten

Cisco Antennas Accessory Model Overview

Antennas for Cisco wireless networking products.
Cisco MA-ANT-3-E5 Motorola Antennas Overview
The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low-density applications and wall-mounted or ceiling-mounted below 25 ft in high-density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users
Technical Information
Operating Frequency Range:
  • 2.400 GHz to 2.500 GHz
  • 5.150 GHz to 5.875 GHz
Antenna Gain (Isotropic):
7 dBi
Interfaces/Ports
Connector Type:
RP-TNC
Physical Characteristics
Height:
10.83"
Width:
10.83"
Depth:
0.93"
Form Factor:
Patch/Wall/Pole
Weight (Approximate):
2.43 lb
Miscellaneous
Application/Usage:
  • Indoor
  • Wireless Access Point
Compatibility:

Meraki MR42E Access Point

Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0810979014515
UPC: 810979014515
EAN: 0810979014515
UNSPSC: 43221706
