Cisco IW-ANT-OMM-53-N= Antenna

Part Number: IW-ANT-OMM-53-N=
Model:
Add to My Shopping List Add to Compare
$616.88
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Directivity
Omni-directional
Operating Frequency Range
4.9 GHz to 6 GHz
Antenna Gain (Isotropic)
3 dBi
Voltage Standing Wave Ratio (VSWR)

Product Description:

  Antennas, Cisco, Cisco Antenna, 4.9 GHz to 6 GHz, 3 dBi, Wireless Data Network, Vehicle, Outdoor, Black, Surface Mount, Omni-directional, N-connector Connector
Explore all Cisco Parts Accessories
Add to Quote

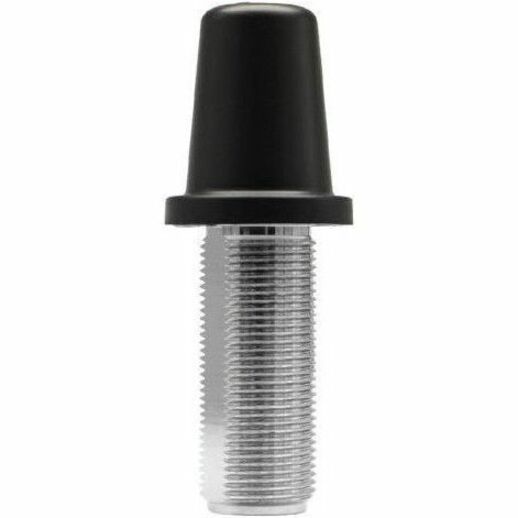

Cisco IW-ANT-OMM-53-N= Antenna
Cisco IW-ANT-OMM-53-N= Antenna
Cisco IW-ANT-OMM-53-N= Antenna Cisco IW-ANT-OMM-53-N= Antenna

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco IW-ANT-OMM-53-N= Antenna Overview

The Cisco 4.9-6 GHz Omni Mobile WiFi Antenna (IW-ANT-OMM-53-N) delivers enhanced connectivity for Autonomous Guided Vehicles (AGVs), Autonomous Mobile Robots (AMR) and unmanned systems even in NLOS and highly obstructed environments. With a multi-polarized three-dimensional element design, it provides maximum reliability and signal stability.

Technical Information
Directivity:
Omni-directional
Operating Frequency Range:
4.9 GHz to 6 GHz
Antenna Gain (Isotropic):
3 dBi
Voltage Standing Wave Ratio (VSWR):
<1.6:1
Interfaces/Ports
Connector Type:
N-connector
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
2.70"
Width:
1"
Form Factor:
Surface Mount
Weight (Approximate):
2 oz
Miscellaneous
Application/Usage:
  • Wireless Data Network
  • Vehicle
  • Outdoor
Package Contents:
  • Antenna
  • Nut
  • Washer
  • Mounting hardware
  • O-Ring
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0889728525381
UPC: 889728525381
EAN: 0889728525381
UNSPSC: 43221706
The Cisco IW-ANT-OMM-53-N= Antenna is also known as CSC-IWANTOMM53N=
