Features:
Fanless
Cisco IE-9320-24P4X-E Switches
Part Number:
IE-9320-24P4X-E
Model:
Cisco Parts Accessory Model Overview
Products and parts from Cisco.

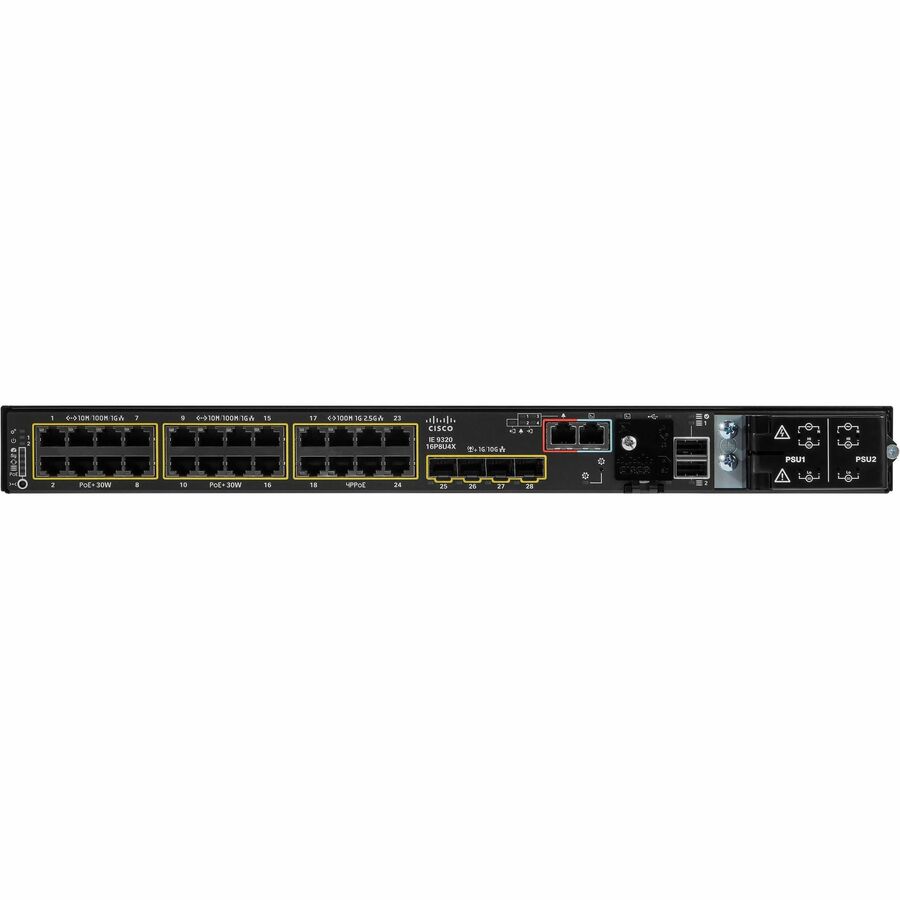

Cisco IE-9320-24P4X-E Switches Overview
The Cisco Catalyst™ IE9300 Rugged Series ushers in mainstream adoption of Gigabit / 10 Gigabit Ethernet connectivity in compact 1RU, rack-mount switches that are purpose-built for a wide variety of industrial and extended enterprise applications.
Product overview
Cisco Catalyst IE9300 Rugged Series switches with 28 ports of Gigabit and 10 Gigabit Ethernet interfaces deliver high-speed Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with support for Cisco Cyber Vision and Cisco Secure Network Analytics.
The IE9300 Rugged Series switches offer:
- Robust resiliency enabled by features such as dual ring design, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), PROFINET, Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR) ring, EtherChannel, integrated redundant power supplies, dying gasp, etc.
- True zero-touch replacement for middle-of-the-night or middle-of-nowhere failures
- Line-rate, low-latency forwarding
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP) and PROFINET
Technical Information
Interfaces/Ports
Total Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet PoE+
- 4 x 10 Gigabit Ethernet Expansion Slot
- 2 x Stack
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-X
I/O Expansions
Total Number of Expansion Slots:
4
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Networking Standards:
- IEEE 802.1ae
- IEEE 802.1D
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.1ab
- IEEE 802.3ad
- IEEE 802.3ah
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
Management & Protocols
Manageable:
Yes
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
720 W
Input Voltage:
- 120 V AC
- 230 V AC
- 18 V DC
- 75 V DC
Frequency:
- 50 Hz
- 60 Hz
Power Source:
AC/DC
Power Consumption:
39 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Compatible Rack Unit:
1U
Form Factor:
- Rack-mountable
- Compact
Height:
1.7"
Width:
17.5"
Depth:
15.6"
Weight (Approximate):
9.70 lb
Miscellaneous
Application/Usage:
- Network
- Enterprise
- IP Camera
- Wireless Access Point
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0889728508360
UPC:
889728508360
EAN:
0889728508360
UNSPSC:
43222612
The Cisco IE-9320-24P4X-E Switches is also known as
CSC-IE932024P4XE
