Features:
- Fanless
- Surge Protection

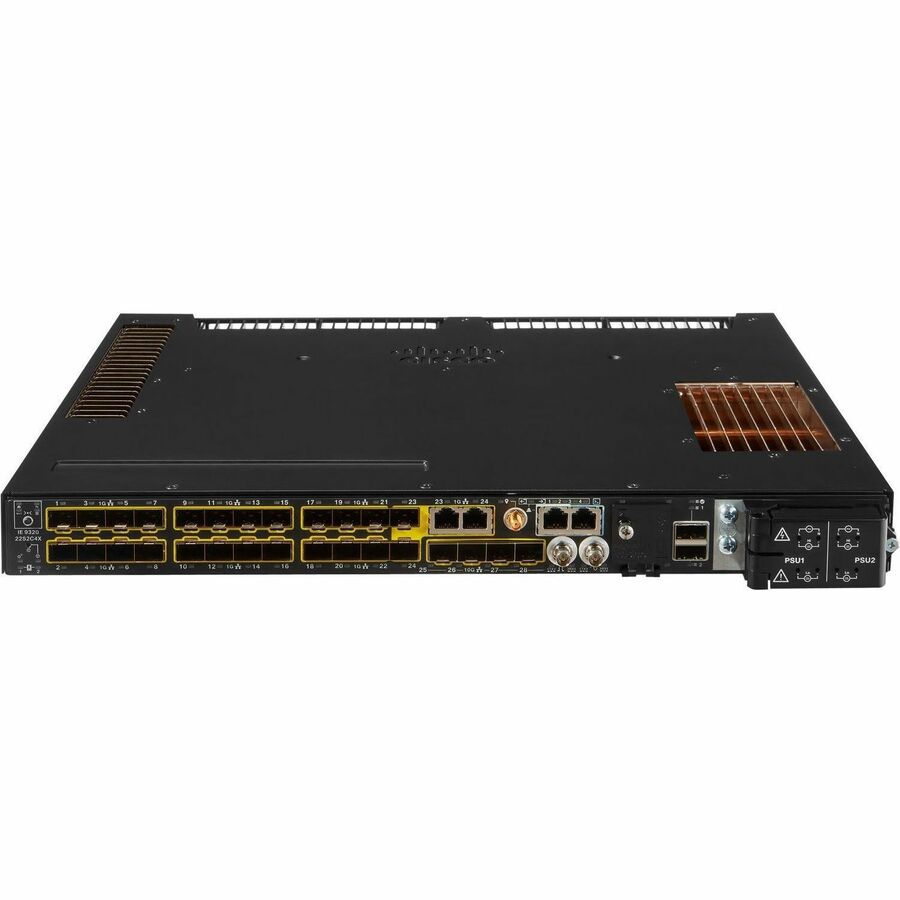

Cisco IE-9320-22S2C4X++ Switches
Part Number:
IE-9320-22S2C4X++
Model:
Cisco Parts Accessory Model Overview
Products and parts from Cisco.
Cisco IE-9320-22S2C4X++ Switches Overview
Cisco Catalyst IE9300 Rugged Series switches with 28 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Secure Network Analytics.
The IE9300 Rugged Series switches offer:
- Robust resiliency enabled by features such as dual ring design through four Gigabit Ethernet uplink ports, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), PROFINET, Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR), ring, EtherChannel, integrated redundant power supplies, dying gasp, etc.
- True zero-touch replacement for middle-of-the-night or middle-of-nowhere failures
- Line-rate, low-latency forwarding with advanced hardware assist features
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP) and PROFINET
Technical Information
Interfaces/Ports
Total Number of Network Ports:
2
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 22 x Gigabit Ethernet Expansion Slot
- 2 x Gigabit Ethernet TP/SFP Combo
- 4 x 10 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-T
I/O Expansions
Total Number of Expansion Slots:
28
Expansion Slot Type:
- SFP (mini-GBIC)
- SFP+
Number of SFP Slots:
24
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Networking Standards:
- IEEE802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1Q
- IEEE 802.1w
- IEEE 802.1ab
- IEEE 802.1s
- IEEE 802.1ad
- IEEE 802.1x
- IEEE 802.1ae
- IEEE 802.1p
- IEEE 802.1D
- IEEE 802.3ad
- IEEE 802.3ah
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
Management & Protocols
Manageable:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
- 100 V DC
- 250 V DC
Frequency:
- 50 Hz
- 60 Hz
Power Source:
- AC/DC
- Power Supply
Redundant Power Supply Supported:
Yes
Power Consumption:
73 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Compatible Rack Unit:
1U
Form Factor:
- Compact
- Rack-mountable
Height:
1.7"
Width:
17.5"
Depth:
14"
Weight (Approximate):
12.70 lb
Miscellaneous
Application/Usage:
- Enterprise
- Business
- Network
- IP Camera
- Wireless Access Point
Certifications & Standards:
- UL/CSA 60950-1
- EN 60950-1, CB to IEC 60950-1 with all country deviations
- UL/CUL 62368-1, CB to IEC62368-1 with country deviations
- NOM to NOM-019-SCFI (through partners and distributor)
- CB report and certificate to IEC 61010-2-201
- UL/CSA 61010-2-201
- CSA C22.2, No.142
- UL 121201 (Class l, Div 2, groups A-D)
- CSA 213 (Class l, groups A-D)
- UL/CSA 60079-0, -7 (Class l, Zone 2, Gc/IIC)
- IEC 60079-0, -7 IECEx test report (Class l, Gc/IIC, ec)
- EN 60079-0, -7 ATEX certificate (Class l, ec)
TAA Compliant:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC:
43222612
The Cisco IE-9320-22S2C4X++ Switches is also known as
CSC-IE932022S2C4X++
