Features:
Fanless

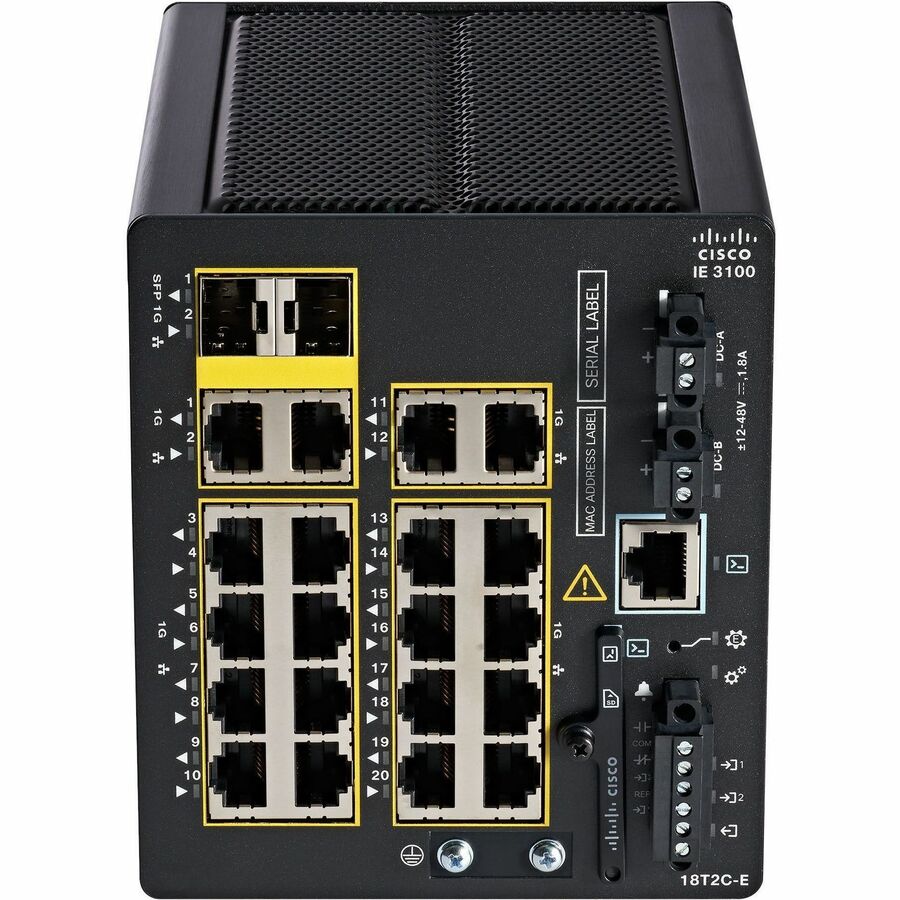

Cisco IE-3100-18T2C-E Switches
Part Number:
IE-3100-18T2C-E
Model:
Cisco Parts Accessory Model Overview
Products and parts from Cisco.
Cisco IE-3100-18T2C-E Switches Overview
The Cisco Catalyst IE3100 Rugged Series delivers mainstream adoption of Gigabit Ethernet connectivity in a compact, fixed form-factor switch that is purpose-built for a wide variety of extended enterprise and industrial applications in the most space constrained scenarios.
Product overview
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
The IE3100 Rugged Series switches offer:
- Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports
- Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET
- Support for Layer-2 Network Address Translation
Technical Information
Interfaces/Ports
Total Number of Network Ports:
20
Uplink Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 18 x 10/100/1000 Base-T RJ-45 Network Port
- 2 x Gigabit Ethernet Uplink Network Port
- 1 x (RS-232) RJ-45 Serial Port
- 1 x Micro-USB Type B
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
Maximum Data Transfer Rate:
125 MB/s
Network & Communication
Layer Supported:
3
Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1Q
- IEEE 802.1w
- IEEE 802.1ab
- IEEE 802.1s
- IEEE 802.3ad
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.1D
- IEEE 802.3ah
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
Management & Protocols
Manageable:
Yes
Reliability
MTBF:
642050 Hour
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
240 W
Input Voltage:
- 12 V
- 48 V
- 9.6 V
- 60 V
Power Source:
- DC
- Power Adapter
Redundant Power Supply Supported:
Yes
Number of Power Supplies Supported:
2
Power Consumption:
36.70 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
- DIN Rail Mountable
- Compact
Height:
5"
Width:
4.3"
Depth:
5.1"
Weight (Approximate):
2.80 lb
Miscellaneous
Application/Usage:
- Enterprise
- Industrial
- Outdoor
- IP Camera
- Wireless Access Point
Energy Star:
No
Item Numbers
GTIN:
0889728463768
UPC:
889728463768
EAN:
0889728463768
UNSPSC:
43222612
The Cisco IE-3100-18T2C-E Switches is also known as
CSC-IE310018T2CE
