Features:
- Fanless
- IP30

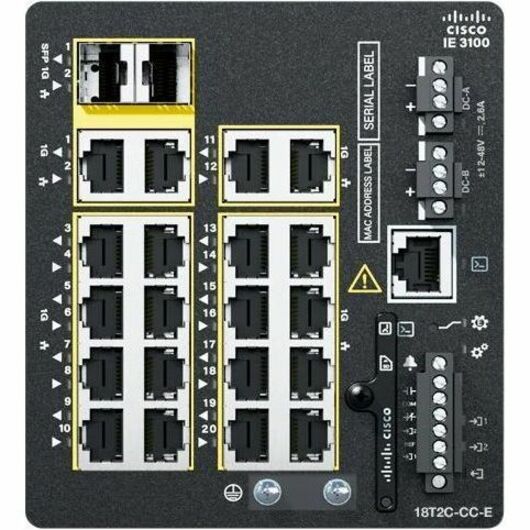

Cisco IE-3100-18T2C-CC-E Switches
Part Number:
IE-3100-18T2C-CC-E
Model:
Cisco Parts Accessory Model Overview
Products and parts from Cisco.
Cisco IE-3100-18T2C-CC-E Switches Overview
The Cisco Catalyst IE3100 Rugged Series delivers mainstream adoption of Gigabit Ethernet connectivity in a compact, fixed form-factor switch that is purpose-built for a wide variety of extended enterprise and industrial applications in the most space constrained scenarios.
Product overview
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
These switches run Cisco IOS XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
The IE3100 Rugged Series switches offer:
- Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports
- Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET
- Support for Layer-2 Network Address Translation
Technical Information
Interfaces/Ports
Total Number of Network Ports:
20
Uplink Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 18 x 10/100/1000 Base-T RJ-45 Network Port
- 2 x Gigabit Ethernet Uplink Combo Port
- 1 x (RS-232) RJ-45 Serial Port
- 1 x Micro-USB Type B
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Maximum Data Transfer Rate:
125 MB/s
I/O Expansions
Expansion Slot Type:
Uplink Module
Network & Communication
Layer Supported:
3
Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1Q
- IEEE 802.1w
- IEEE 802.1ab
- IEEE 802.1s
- IEEE 802.3ad
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.1D
- IEEE 802.3ah
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
Management & Protocols
Manageable:
Yes
Reliability
MTBF:
777450 Hour
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
240 W
Input Voltage:
- 12 V
- 48 V
- 9.6 V
- 60 V
Power Source:
DC
Power Consumption:
36.70 W
Physical Characteristics
Form Factor:
- DIN Rail Mountable
- Compact
Height:
5"
Width:
4.3"
Depth:
5.1"
Weight (Approximate):
2.80 lb
Miscellaneous
Application/Usage:
- Enterprise
- Industrial
- Outdoor
- IP Camera
- Wireless Access Point
- Transportation
Certifications & Standards:
- EN 61131-2 (EMC/EMI, environmental, mechanical)
- Marine DnV
- Substation / Utility (IEEE 1613, IEC 61850-3)
- EN50121-3-2
- EN50121-4
- NEMA TS-2 (EMC, mechanical)
- ABB Industrial IT certification
- IP30
- ODVA Industrial Ethernet/IP support
- PROFINETv2.3 support
Safety standards and certifications
Information Technology Equipment:
- UL/CSA 60950-1
- UL/CSA 62368-1
- CB report and certificate to IEC 62368-1 with all country deviations
Industrial floor (control equipment):
- UL/CSA 61010-2-201
Hazardous Locations:
- UL121201(Class l, Div 2, groups A-D)
- CSA 22.2 No 213 (Class l, groups A-D)
- UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC)
- IEC 60079-0, -7, -15 IECEx test report (Class l, Gc/IIC)
- EN 60079-0, -15 ATEX certificate (Class l, Gc/IIC)
- An external IP54 enclosure is required for hazardous location installations (see hardware install guide / hazardous locations document for more information)
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0889728575492
UPC:
889728575492
EAN:
0889728575492
UNSPSC:
43222612
