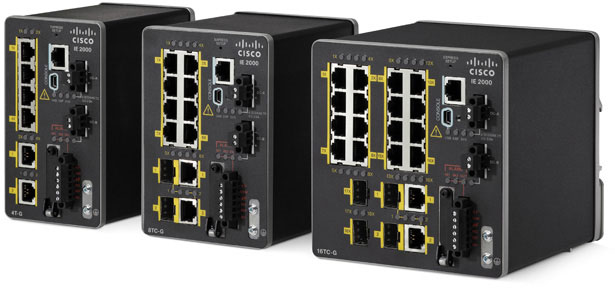

Cisco IE-2000-16TC-G-L Ethernet Switch

The Cisco Industrial Ethernet 2000 Series Switches offer a robust solution for industries requiring reliable access layer connectivity. These compact, ruggedized switches are engineered to support a variety of applications, including voice and video traffic. With features like secure access through dynamic port-based authentication and resilient Ethernet protocols, the IE 2000 switches ensure seamless integration into industrial environments. Designed for easy deployment, these switches enable organizations in sectors like automotive and energy to transition smoothly to IP-based networks while maintaining high performance and safety standards.
Key Features:

• Multiple Port Configurations: 4, 8, or 16 10/100Base-T Ethernet ports with Gigabit combo options.
• Zero-Touch Deployment: Quick setup with DHCP support and a fast boot-up time of 60 seconds.
• Advanced Security: Features including Dot1x, SNMP v3, and RADIUS authentication.
• High Resiliency: Cisco Resilient Ethernet Protocol (REP) for rapid recovery and fast convergence.
• Environmental Compliance: Certified for industrial use and available conformal coating for protection.

Specifications:

• Hardware Specifications:
  • 256MB DRAM with ECC memory.
  • 64MB onboard flash memory & optional 1GB removable SD memory card.
  • Operating voltage range: 9.6 to 60 VDC.
• Power Consumption:
  • 6-port models: 9.5-15W.
  • 10-port models: 12.5-20W.
  • 20-port models: 21-30W.
• Weight & Dimensions:
  • 6-port chassis: 5.1 x 2.95 x 4.51 in, 2.45 lbs.
  • 10-port short chassis: 5.1 x 3.6 x 4.51 in, 2.75 lbs.
  • 20-port chassis: 5.1 x 5.0 x 5.26 in, 4.35 lbs.
• Operating Temperature:
  • -40C to +70C (vented enclosure).
  • -40C to +60C (sealed enclosure).
