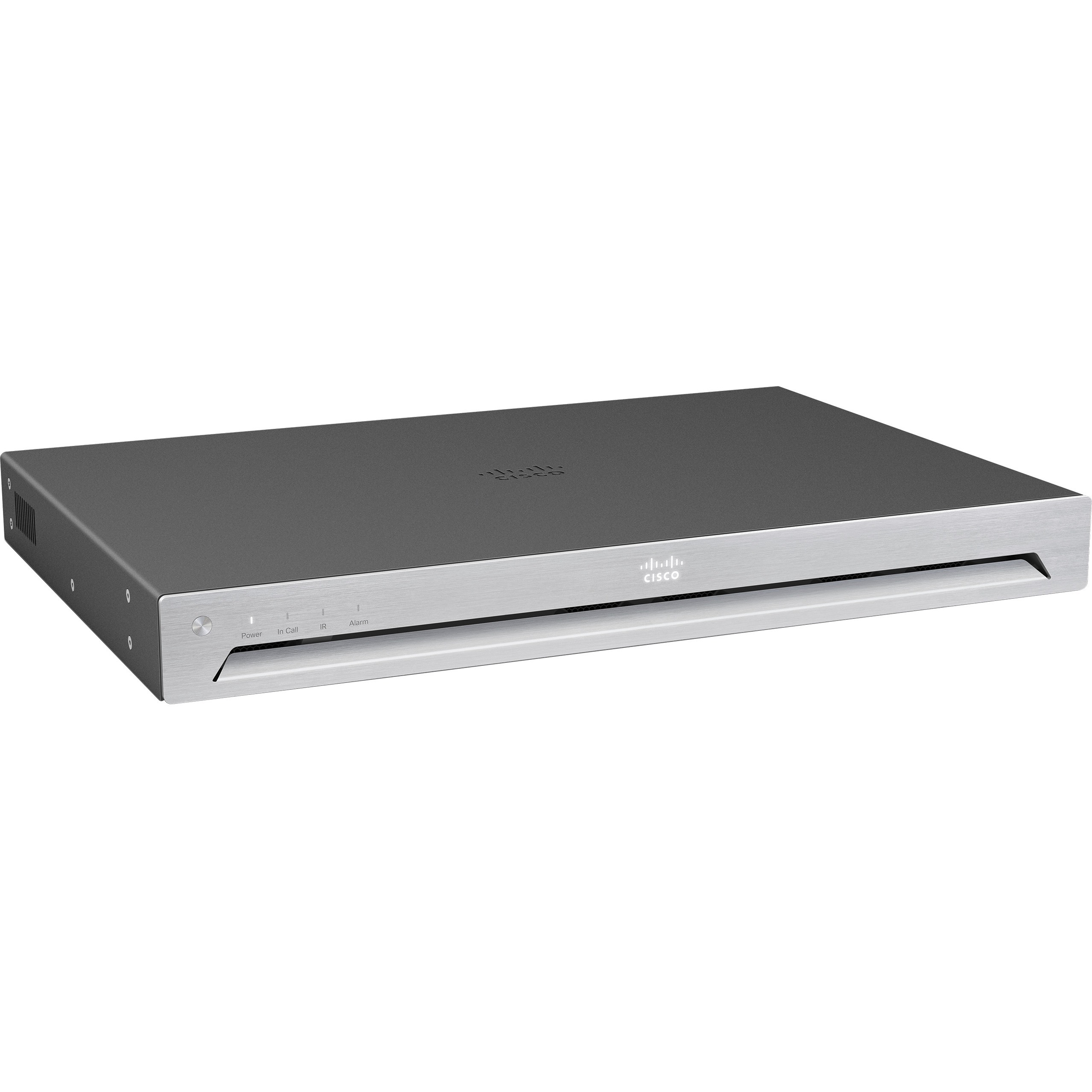

Cisco CTS-SX80-IPST60-K9 Accessory

Cisco - Cisco TelePresence SX80 Codec - 1920 x 1080 Video (Live) - Point-to-Point - Full HD - NTSC/PAL - 60 fps - 3 x Network (RJ-45) - 3 x HDMI In - 2 x HDMI Out - 1 x DVI In - 1 x DVI OutComposite Video InAudio Line In - Audio Line Out - USB - ISDN - Gigabit Ethernet - Wireless LAN
  • With unmatched performance and clarity, this video conference equipment lets you conduct better video conference meetings
  • Get enhanced high-quality video at 60 fps frame rate
  • Featuring Gigabit Ethernet port for ultra-high quality communication
  • Network (RJ-45) - For instant connectivity
  • With the 10/100/1000Base-T technology, get up to 1000Mbps data transfer rate over the twisted pair cable
  • Supports SIP ITU-T recommendations for high-quality enhanced performance
Read More

Need a different version? See all Cisco Parts Accessories

$31,081.62
Add to Quote
Add to My Shopping List Add to Compare
Cisco CTS-SX80-IPST60-K9 Accessory
Cisco CTS-SX80-IPST60-K9 Accessory
Cisco CTS-SX80-IPST60-K9 Accessory
Cisco Parts Accessory Model Overview
Products and parts from Cisco.
Cisco CTS-SX80-IPST60-K9 Accessory Overview
The Cisco TelePresence SX80 Codec (SX80 Codec) provides a powerful and flexible platform for creating the ultimate video collaboration experience. The SX80 Codec was built with the integrator in mind, enabling flexibility and creativity for customized video collaboration rooms that delight the customer. The SX80 acts as the audio and video engine to incorporate high-definition video collaboration applications into large meeting rooms, boardrooms and purpose-built or vertical application rooms.
Technical Information
ITU-T Recommendation:
  • SIP
  • H.323
  • H.460
  • H.245
  • H.350
  • H.235v3
Video Bridging:
Point-to-Point
Video
Graphics Modes (Live):
Full HD
Video Signal Format:
NTSC/PAL
Maximum Video Resolution (Live):
1920 x 1080
Maximum Frame Rate:
60 fps
Video Encoding:
  • H.261
  • H.263
  • H.263+
  • H.264
  • H.239
Audio
Audio Encoding:
  • G.711
  • G.722
  • G.722.1
Network & Communication
Carrier Supported:
ISDN
Network Technology:
10/100/1000Base-T
Ethernet Technology:
Gigabit Ethernet
Wireless Specifications
Wireless LAN:
Yes
Interfaces/Ports
Composite Video In:
Yes
DVI In:
Yes
DVI Out:
Yes
HDMI In:
Yes
HDMI Out:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
3
Number of DVI In:
1
Number of DVI Out:
1
Number of HDMI Inputs:
3
Number of HDMI Outputs:
2
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
12.2"
Weight (Approximate):
8.05 lb
Miscellaneous
Package Contents:
  • TelePresence SX80 Codec
  • Rack ears
  • Power Cable
Certifications & Standards:
  • EN 61000-3-2
  • EN 61000-3-3
  • EN55024
  • EN55022 Class A
  • EN 60950-1
  • FCC CFR47 Part 15 B
  • CAN/CSA C22.2 No. 60950-1
  • UL60950-1
Item Numbers
GTIN: 0882658667053
UPC: 882658667053
EAN: 0882658667053
UNSPSC: 45111902
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco CTS-SX80-IPST60-K9 Accessory is also known as CSC-CTSSX80IPST60K9
