Cisco CTS-SX80-IP60-K9 Accessory

Cisco - Cisco SX80 Codec, Precision 60 Camera, and Touch 10 - 1920 x 1080 Video (Live) - Point-to-Point - WUXGA - NTSC/PAL - 60 fps - 2 x Network (RJ-45) - 3 x HDMI In - 2 x HDMI Out - 1 x DVI In - 1 x DVI Out - 1 x Composite Video InAudio Line In - Audio Line Out - USB - Gigabit Ethernet
  • Get extraordinary conferencing experience with this video conference equipment and delight your customers and meeting participants
  • 60 fps frame rate reduces image flickering to its minimal and offers a fluid video display
  • Up to 10x faster than standard Ethernet connectivity while providing high-performance communication
  • Simply plug in RJ-45 port to connect the conference equipment on the network
  • With the 10/100/1000Base-T technology, get up to 1000Mbps data transfer rate over the twisted pair cable
  • Supports H.460.18/19 ITU-T recommendations for high-quality enhanced performance
Read More

Need a different version? See all Cisco Parts Accessories

$25,355.32
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Cisco CTS-SX80-IP60-K9 Accessory
Cisco CTS-SX80-IP60-K9 Accessory
Cisco Parts Accessory Model Overview
Products and parts from Cisco.
Cisco CTS-SX80-IP60-K9 Accessory Overview

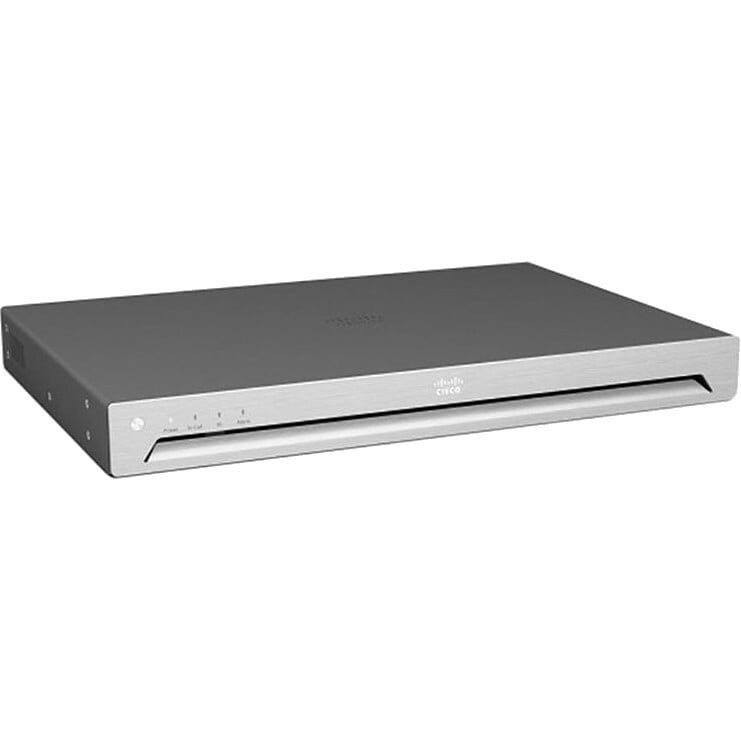

The Cisco TelePresence SX80 Codec (SX80 Codec) provides a powerful and flexible platform for creating the ultimate video collaboration experience. The SX80 Codec was built with the integrator in mind, enabling flexibility and creativity for customized video collaboration rooms that delight the customer. The SX80 acts as the audio and video engine to incorporate high-definition video collaboration applications into large meeting rooms, boardrooms and purpose-built or vertical application rooms.
Technical Information
ITU-T Recommendation:
  • H.460.18/19
  • H.323
  • H.235
  • H.245
Video Bridging:
Point-to-Point
Video
Graphics Modes (Live):
WUXGA
Video Signal Format:
NTSC/PAL
Maximum Video Resolution (Live):
1920 x 1080
Maximum Frame Rate:
60 fps
Video Encoding:
  • H.261
  • H.263
  • H.263+
  • H.264
  • H.265
Audio
Audio Encoding:
  • G.711
  • G.722
  • G.722.1
  • G.729ab
  • MPEG-4 Audio
Network & Communication
Network Technology:
10/100/1000Base-T
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Composite Video In:
Yes
DVI In:
Yes
DVI Out:
Yes
HDMI In:
Yes
HDMI Out:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
2
Number of Composite Video Inputs:
1
Number of DVI In:
1
Number of DVI Out:
1
Number of HDMI Inputs:
3
Number of HDMI Outputs:
2
Number of Audio Line In:
4
Number of Audio Line Out:
6
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
12.2"
Weight (Approximate):
8.05 lb
Miscellaneous
Package Contents:
  • SX80 Codec
  • Rack Ears
  • Power Cables
  • Presentation Cable
  • Precision 60 Camera 20x
  • Power Supply
  • Touch 10"
  • Ggray Ethernet Cable
  • Power Injector
Certifications & Standards:
  • Directive 2006/95/EC (Low Voltage Directive) - Standard EN 60950-1
  • Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class A - Standard EN 55024 - Standard EN 61000-3-2/-3-3
  • Approved according to UL 60950-1 and CAN/CSA-C22.2 No. 60950-1
  • Complies with FCC CFR 47 15B, Class A
Item Numbers
GTIN: 0057229204191, 0882658651922
UPC: 057229204191, 882658651922
EAN: 0057229204191, 0882658651922
UNSPSC: 45111902
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco CTS-SX80-IP60-K9 Accessory is also known as CSC-CTSSX80IP60K9
