Full specifications (PDF)
Total Number of Ports:
3
Management Port:
Yes
Cisco CISCO3945/K9 Data Networking
Part Number:
CISCO3945/K9
Model:
3900 Series
Cisco 3900 Series Accessory Model Overview
The Cisco 3900 Series builds on the best-in-class offering of the existing Cisco 3800 Series Integrated Services Routers by now offering four platforms: the Cisco 3945E, Cisco 3925E, Cisco 3945, and Cisco 3925 Integrated Services Routers. The Cisco 3900 Series offers embedded hardware encryption acceleration, voice- and video-capable DSP slots, optional firewall, intrusion prevention, call processing, voicemail, and application services. In addition, the platforms support the industry's widest range of wired and wireless connectivity options such as T1/E1, T3/E3, xDSL, copper, and fiber Gigabit Ethernet. The Cisco 3900 Series offers superior performance and flexibility for flexible network deployments from small business offices to large enterprise offices - all while providing industry-leading investment protection.
Cisco CISCO3945/K9 Data Networking Overview

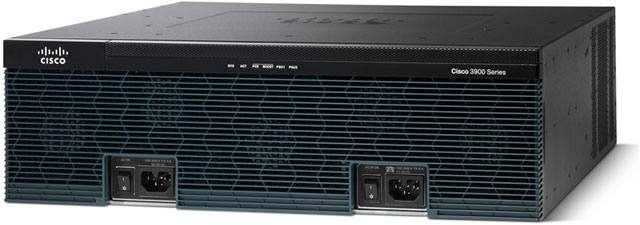

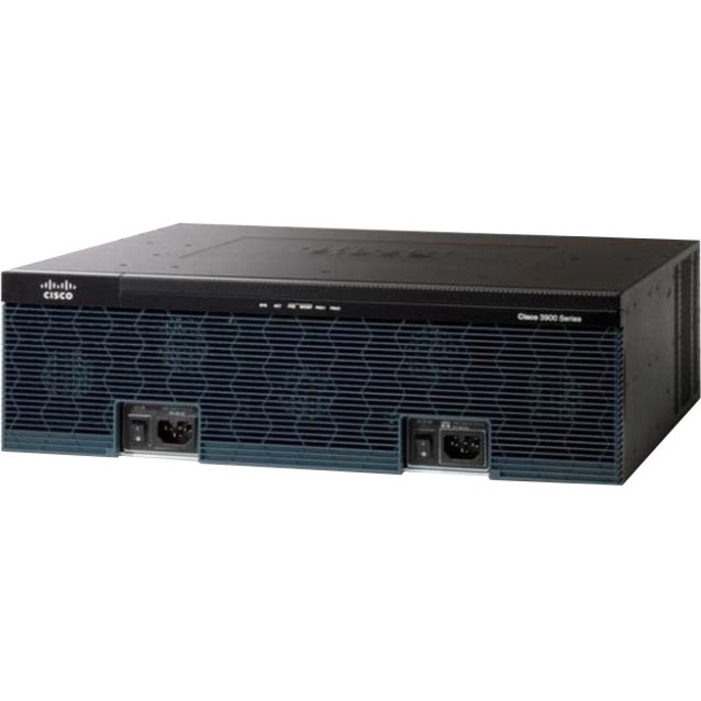

Cisco 3945 Integrated Services Router build on 25 years of Cisco innovation and product leadership. The new platforms are architected to enable the next phase of branch-office evolution, providing rich media collaboration and virtualization to the branch while maximizing operational cost savings. The new Integrated Services Routers Generation 2 are future-enabled with support for new high capacity DSPs (Digital Signal Processors) for future enhanced video capabilities, high powered service modules with improved availability, multi-core CPUs, Gigabit Ethernet switching with enhanced POE, and new energy visibility and control capabilities while enhancing overall system performance.
Interfaces/Ports
I/O Expansions
Total Number of Expansion Slots:
17
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Power Description
Redundant Power Supply Supported:
Yes
Physical Characteristics
Compatible Rack Unit:
3U
Form Factor:
Rack-mountable
Height:
5.3"
Width:
17.3"
Depth:
18.8"
Weight (Approximate):
39.02 lb
Miscellaneous
Package Contents:
- 3945 Integrated Services Router
- Services Performance Engine (SPE): C3900-SPE150/K9
- Compact Flash (external): Default 256MB
Item Numbers
UNSPSC:
43222609
Get help from a Barcoding Expert!
The Cisco CISCO3945/K9 Data Networking is also known as
CSC-CISCO3945/K9
