Cisco CBS110-8T-D-NA Ethernet & Network Switches

Part Number: CBS110-8T-D-NA
Model: 110 Series
$61.76
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
8
Port/Expansion Slot Details
8 x Gigabit Ethernet Network
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet

Product Description:

  Wireless Switch/Controller, Cisco, Cisco Business 110 Series Unmanaged Switch, Provides Gigabit Ethernet Switching with PoE, 8 Ports, Rack-mountable, DC Power

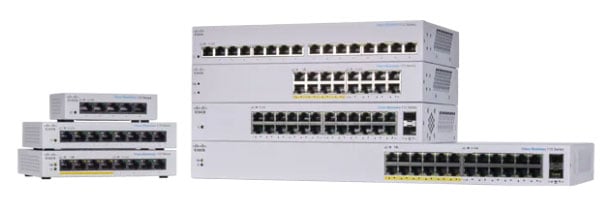

Cisco 110 Series Ethernet & Network Switches Model Overview

The Cisco Business 110 Series Unmanaged Switches are ideal for small businesses looking for affordable, high-performance networking solutions. With plug-and-play deployment, these switches require no technical expertise and are designed for seamless integration into your existing network. They support Gigabit Ethernet speeds, allowing for rapid file transfers and efficient operation of bandwidth-intensive applications. Available in 5 to 24-port models and supporting Power over Ethernet (PoE), the Cisco Business 110 Series provides the flexibility and power management needed for a diverse range of business environments.


Key Features
  • Plug-and-play installation with no configuration required
  • Available in 5- to 24-port models, suitable for any small office setup
  • Power over Ethernet (PoE) support for easy deployment of IP telephony and wireless devices
  • High-performance Gigabit Ethernet connectivity for fast data transfers
  • Energy-efficient design to reduce operating costs and environmental impact

Specifications
  • Ports: Available in models with 5, 8, 16, or 24 Gigabit Ethernet ports
  • Performance: Switching capacity up to 35.7 mpps and 48 Gbps
  • Media Interface: Automatic MDI/MDI-X for simplified connections
  • Dimensions: Range from 110 x 75 x 30 mm to 440 x 203 x 44 mm
  • Weight: Varies from 0.23 kg (0.52 lb) to 2.98 kg (6.57 lb) depending on model
  • Power Consumption: Supports 110-240V AC; PoE power budgets up to 100W
  • Warranty: Limited lifetime hardware warranty for peace of mind
Cisco CBS110-8T-D-NA Ethernet & Network Switches Overview

Affordable, Plug-and-Play Switches for Small Business Networks

Highlights

  • Affordable 10/100/1000-Mbps speeds for bandwidth-hungry applications
  • Plug-and-play, not IT knowledge required
  • 5- to 24-port models that are desktop or rack mountable
  • Power over Ethernet models to provide power to access points, IP phones and, other devices
Product overview

These are times of unprecedented change for small businesses. Consumers are more demanding than ever before. Online transactions have accelerated. While this new promises greater reward, it also requires small businesses to accelerate digital transformation. At the same time, employees are increasingly distributed across remote and office locations, and this trend is likely to continue. You need a network solution that provides fast, reliable access to critical cloud-based business applications across a remote and in-office workforce.

Now you can have a high-performance, business-class network with the Cisco® Business 110 Series Unmanaged Switches. These affordable plug-and-play switches are ideal for small offices, workgroups, departments, and growing offices with limited IT know-how and support.

Cisco Business 110 Series Unmanaged Switches, part of the Cisco Business networking portfolio, are a family of affordable switches that provide Gigabit Ethernet connectivity for your small business network. Available in desktop and rack-mount models, these switches are designed to suit any small business with basic network needs and are optimized for power efficiency. They provide robust network connectivity your business demands, as well as added reliability with advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes. The Cisco Business 110 Series switches bring the proven reliability and investment protection of Cisco networking solutions to your small business.

Features

Cisco Business 110 Series switches provide an easy-to-use solution for your small business network. They offer:

Simple:
Cisco Business 110 Series switches work right out of the box, with plug-and-play capability without software installation and configuration. Each switch port independently sets itself for the optimal speed and determines whether to run in half- or full-duplex mode automatically. As a standards-based Cisco solution, Cisco Business 110 Series switches are also designed to immediately accommodate all of the devices in your network.

Flexible deployment: Designed for small office spaces, Cisco Business 110 Series switches are available in 5-, 8-, 16-, and 24-ports configurations, providing ultimate flexibility for diverse use cases and deployment scenarios. The Cisco Business 110 Series switches are also available in both compact desktop and rack-mount models. The desktop models offer a wall-mount option for discreet mounting under a desk or on the wall of an office or conference room. All switches have no fans, so they run silently and unobtrusively in any workspace.

High performance: Cisco Business 110 Series switches deliver the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
Interfaces/Ports
Total Number of Network Ports:
8
Port/Expansion Slot Details:
8 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Power Source:
Power Supply
Power Consumption:
4.13 W
Physical Characteristics
Form Factor:
  • Desktop
  • Wall Mountable
  • Rack-mountable
Height:
1.2"
Width:
6.3"
Depth:
4.1"
Weight (Approximate):
15.17 oz
Miscellaneous
Package Contents:
  • 110 CBS110-8T-D Ethernet Switch
  • Power Cord or Adapter
  • Quick Start Guide
  • Mounting Kit
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0889728326865
UPC: 889728326865
EAN: 0889728326865
UNSPSC: 43222612

Frequently Asked Questions

The Cisco CBS110-8T-D delivers 11.9 million packets per second (mpps) with a switching capacity of 16 Gbps, providing wire-speed and nonblocking performance. This makes it ideal for small offices and workgroups that need reliable Gigabit Ethernet connectivity without network bottlenecks. We offer this model as part of our comprehensive Cisco Business networking portfolio.

Yes, the Cisco Business 110 Series is specifically designed as a plug-and-play unmanaged switch for small offices, workgroups, and departments with limited IT know-how. The CBS110-8T-D requires no complex configuration, making it an affordable and accessible solution for growing businesses. Contact us today to find the right switch for your network needs.

The CBS110-8T-D supports IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, and IEEE 802.3z Gigabit Ethernet standards. It also includes IEEE 802.3x Flow Control and 802.1p priority support for quality of service management. These standards ensure broad compatibility with existing business network infrastructure available from us.

The CBS110-8T-D provides 802.1p priority-based QoS with 4 hardware queues, supporting both priority queuing and Weighted Round-Robin (WRR) traffic management. These features help optimize network performance for critical business applications and ensure consistent service delivery. Visit barcodesinc.com to learn more about how this switch can improve your network efficiency.

Yes, the CBS110-8T-D includes built-in cable diagnostics that quickly identify and troubleshoot network cable faults and shorts, reducing downtime and support costs. It also features loop detection to help discover network loops and prevent broadcast storms. We offer this proactive diagnostic capability as part of the switch's comprehensive management features.

The Cisco CBS110-8T-D supports an 8K MAC address table, allowing it to handle larger networks with many connected devices. Additionally, the switch supports jumbo frames up to 9216 bytes for enhanced performance with larger data transfers. Contact us today to discuss whether this capacity meets your organization's networking requirements.

The Cisco CBS110-8T-D-NA Ethernet & Network Switches is also known as CSC-CBS1108TDNA or CBS1108TDNA.
