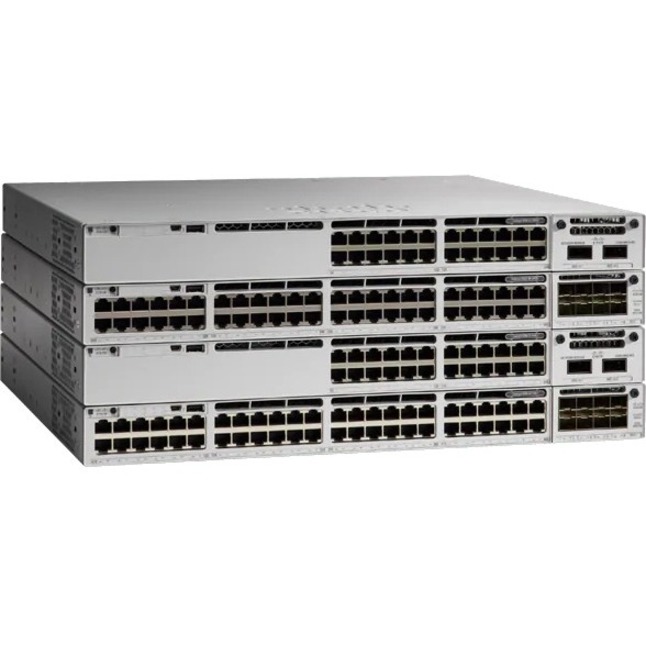

Cisco Catalyst 9300 Ethernet & Network Switches Model Overview
The Cisco Catalyst 9300 Series is Cisco’s leading stackable enterprise access switching platform, delivering high-density, secure, and cloud-ready networking for businesses. Built to support a hybrid work environment, it offers modular and fixed uplink options, high-speed stacking bandwidth up to 1 Tbps, and the highest multigigabit and PoE+ port density in its class. With advanced security, cloud management via Meraki, and integrated AI-driven analytics, the Catalyst 9300 ensures seamless connectivity, optimized performance, and future-ready network scalability.
Key Features:
StackWise-1T technology enables 1 Tbps stacking bandwidth for unmatched scalability.
Flexible uplink options with 100G, 40G, 25G, 10G, and multigigabit support.
Cisco ThousandEyes integration for real-time network analytics and troubleshooting.
Cloud and on-premise management with Cisco Meraki or Cisco DNA Center.
Advanced security, including AES-256 MACsec encryption and Encrypted Traffic Analytics.
The Cisco® Catalyst® 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE®+ ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
The Foundation of Software-Defined access
Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.
The Cisco Digital Network Architecture (Cisco DNA) with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:
What port configurations are available on the Cisco C9300-48UN-E switch?
The Cisco C9300-48UN-E features 48 ports with flexible connectivity options supporting 5 Gbps, 2.5 Gbps, and 1 Gbps copper connections, along with 25 Gbps, 10 Gbps, or 1 Gbps fiber downlink options. This modular design allows you to configure the switch to match your specific network bandwidth requirements. We offer this switch as part of our comprehensive Cisco Catalyst networking portfolio available from barcodesinc.com.
Does the C9300-48UN-E support Power over Ethernet (PoE)?
Yes, the C9300-48UN-E supports multiple PoE options including Cisco UPOE+, Cisco UPOE, and PoE+ with a 90W PoE budget. This enables you to power enterprise-grade devices such as IP phones, wireless access points, video cameras, and virtual desktop clients directly from the switch ports. Contact us today to discuss PoE requirements for your deployment.
What security features does the Cisco C9300-48UN-E include?
The C9300-48UN-E includes enterprise-grade security capabilities such as MACsec-256 encryption in hardware, IPsec support, Cisco Umbrella cloud security integration, and support for 100G IPsec in hardware. The switch also supports application hosting including ASAc firewall and Docker containers for advanced threat protection. Visit barcodesinc.com to learn more about security features that protect your network infrastructure.
Is the C9300-48UN-E suitable for large-scale data center environments?
The C9300-48UN-E is designed for campus, branch, and enterprise applications requiring high performance for large file transfers and network backups, with support for Layer 2 to Layer 4 Jumbo Frames up to 9216 bytes. Its modular architecture and flexible port speeds make it adaptable to various network topologies. We recommend contacting our team at barcodesinc.com to assess whether this model meets your specific data center requirements.
What management and monitoring options are available for the C9300-48UN-E?
The C9300-48UN-E supports comprehensive network management through Meraki cloud monitoring and management capabilities, embedded wireless controller functionality, and integration with ThousandEyes Enterprise Agent and Cisco Spaces for advanced visibility. The switch also supports NSF/SSO for non-stop forwarding and stateful switchover. Contact us today for details on management platform compatibility with your existing infrastructure.
What is the power consumption and environmental rating for the C9300-48UN-E?
The C9300-48UN-E has a power consumption rating of 1100W and is ENERGY STAR® certified for efficient operation in enterprise environments. The switch is rack-mountable and designed for standard data center installation with redundant power and fan options available. Visit barcodesinc.com or contact our team for specific environmental specifications and deployment guidance.
The Cisco C9300-48UN-E Ethernet & Network Switches is also known as
CSC-C930048UNE
