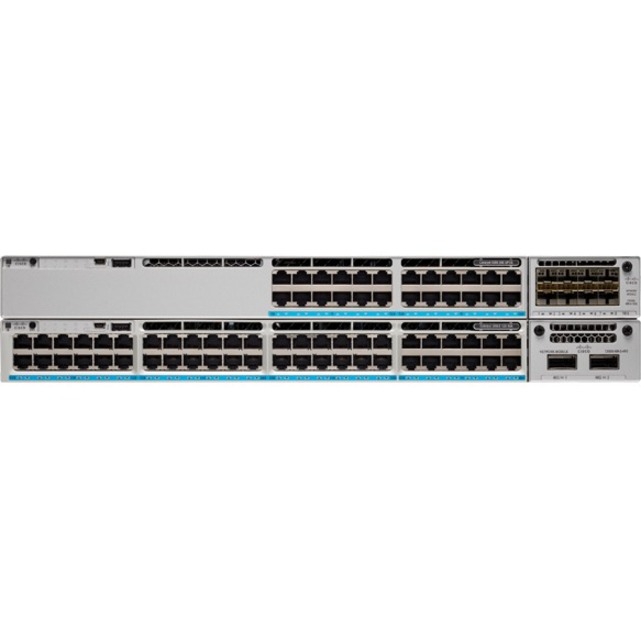

Cisco Catalyst 9300 Ethernet & Network Switches Model Overview
The Cisco Catalyst 9300 Series is Cisco’s leading stackable enterprise access switching platform, delivering high-density, secure, and cloud-ready networking for businesses. Built to support a hybrid work environment, it offers modular and fixed uplink options, high-speed stacking bandwidth up to 1 Tbps, and the highest multigigabit and PoE+ port density in its class. With advanced security, cloud management via Meraki, and integrated AI-driven analytics, the Catalyst 9300 ensures seamless connectivity, optimized performance, and future-ready network scalability.
Key Features:
StackWise-1T technology enables 1 Tbps stacking bandwidth for unmatched scalability.
Flexible uplink options with 100G, 40G, 25G, 10G, and multigigabit support.
Cisco ThousandEyes integration for real-time network analytics and troubleshooting.
Cloud and on-premise management with Cisco Meraki or Cisco DNA Center.
Advanced security, including AES-256 MACsec encryption and Encrypted Traffic Analytics.
The Cisco® Catalyst® 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
The foundation of Software-Defined Access
Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.
The Cisco Digital Network Architecture (Cisco DNA) with SD-Access is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:
What port configurations are available on the Cisco C9300-48UN-A switch?
The Cisco Catalyst 9300 series offers flexible port configurations with 48-port models supporting speeds of 5 Gbps, 10 Gbps, 25 Gbps, and 1 Gbps. We offer both fixed options (C9300L/C9300LM) and modular options (C9300X and C9300) to match your network architecture requirements. Downlink options include Cisco 10G Multigigabit copper or 25 Gbps, 10 Gbps, and 1 Gbps fiber connectivity.
Does the C9300-48UN-A support Power over Ethernet (PoE)?
Yes, the Cisco C9300 series supports multiple PoE options including perpetual Cisco 90W UPOE+, Cisco UPOE, and PoE+ configurations. Different models in the C9300 family offer varying PoE budgets—for example, the C9300-48H-1A provides 822W PoE budget, while the C9300X series models offer 90W PoE budget. Contact us today to verify the specific PoE specifications for your required model.
What security features does the Cisco C9300-48UN-A provide?
The Cisco Catalyst 9300 includes enterprise-grade security features such as MACsec-256 encryption, 100G IPsec in hardware, Cisco Umbrella cloud security integration, and support for IPsec protocols. The switch also supports application hosting including ASAc firewall and Docker containers for advanced threat protection. These features make it suitable for demanding enterprise and logistics environments requiring robust network security.
Can the C9300-48UN-A be managed through the cloud?
Yes, the Cisco C9300 series supports Meraki cloud monitoring and management options, enabling remote visibility and control of your network infrastructure. The switch also supports Cisco Spaces and ThousandEyes Enterprise Agent for enhanced network analytics and performance monitoring. Visit barcodesinc.com to explore cloud management licensing options available with our C9300 switches.
Is the Cisco C9300-48UN-A energy efficient?
Yes, select models in the Cisco Catalyst 9300 series are ENERGY STAR® certified, helping reduce operational costs and environmental impact in your data center or warehouse environment. The modular design and flexible power options (with power consumption ranging from 715W to 1100W depending on configuration) allow you to optimize energy usage based on your specific deployment needs.
What redundancy and high-availability features does the C9300-48UN-A offer?
The Cisco Catalyst 9300 supports NSF/SSO (Non-Stop Forwarding/Stateful Switchover) for seamless failover and includes redundant power and fan options for maximum uptime. Hot patching capability allows you to apply security updates without disrupting network operations. These features are critical for warehouse and logistics operations requiring continuous network availability.
The Cisco C9300-48UN-A Ethernet & Network Switches is also known as
CSC-C930048UNA
