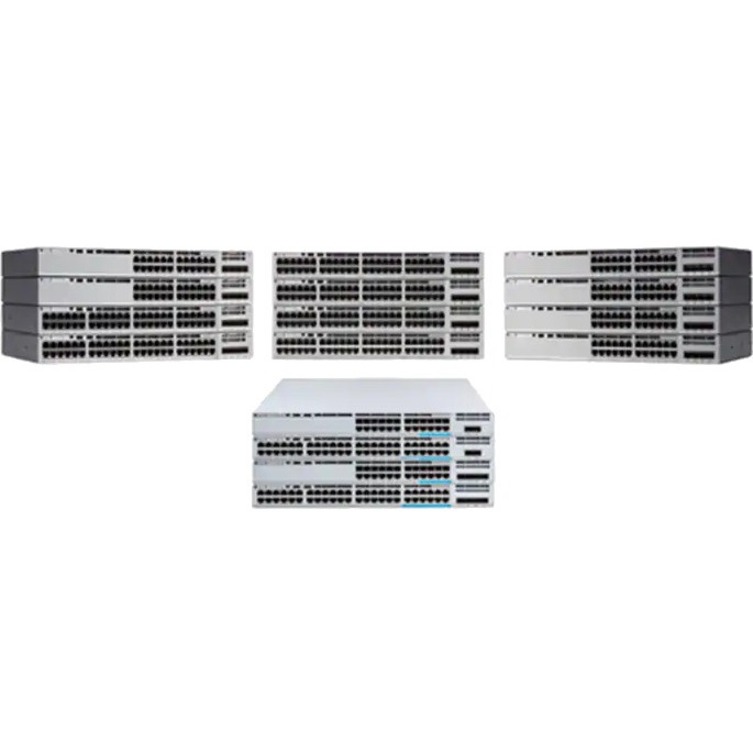

Cisco Catalyst 9200 Ethernet & Network Switches Model Overview
The Cisco Catalyst 9200 Series Switches are designed to simplify intent-based networking across various deployments while delivering enhanced security and performance. These switches extend the power of Cisco's innovative hardware and software, offering exceptional resiliency and operational efficiencies. With full PoE+ capabilities, redundant power supplies, and dynamic power allocation, the Catalyst 9200 ensures reliable operation for your network, making it an ideal choice for growing businesses seeking scalable and secure connectivity solutions.
Key Features:
Full Power over Ethernet Plus (PoE+) capability for up to 48 ports.
Resiliency with field-replaceable units (FRUs) and redundant power supplies.
Stackable architecture with high bandwidth and simple management.
Enhanced security features like AES MACsec encryption.
Advanced routing capabilities with Layer 3 support.
Specifications:
Models: C9200, C9200L, and C9200CX

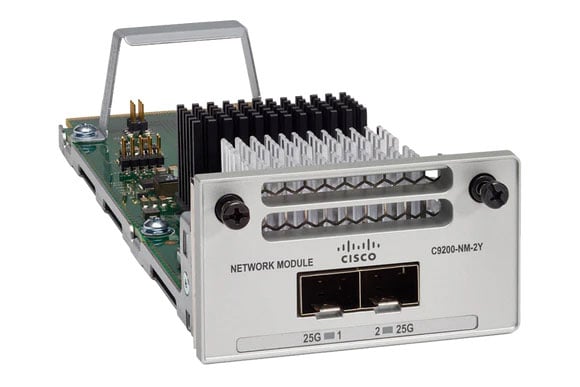

Uplink options: Modular and fixed uplinks available
Power Supply: Various options including 125W, 600W, and 1KW AC
Dimensions: 1.73 x 17.5 x 13.8 inches
Weight: Ranges from 4.0 to 12.12 pounds depending on model
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
What are the key features of the Cisco C9200-48PL-E switch?
The Cisco Catalyst 9200-48PL-E delivers enterprise-class Layer 2 and Layer 3 switching with 48-port Partial PoE+ capability, supporting IP phones and Wi-Fi 6/6E access points. It features StackWise-160 support for up to 160 Gbps stacking bandwidth, advanced AES-128/256 MACsec encryption for security, and cloud management via Meraki dashboard with AI-driven network automation. The switch runs Cisco IOS XE software with Plug and Play (PnP) enablement for simplified deployment.
Does the Cisco C9200-48PL-E support Power over Ethernet (PoE)?
Yes, the C9200-48PL-E features full PoE+ capability across its 48 ports, allowing you to power IP phones, wireless access points, and other PoE-enabled devices directly from the switch without requiring separate power injectors. This reduces cabling complexity and operational costs in enterprise deployments.
What cloud management options are available for the C9200-48PL-E?
The Cisco C9200-48PL-E integrates with Meraki cloud management dashboard, providing centralized, AI-driven network automation and monitoring. Additionally, it supports Cisco Software-Defined Access (SD-Access) with policy-based automation managed through Cisco Identity Services Engine (ISE) and Cisco Catalyst Center for network assurance and improved resolution times.
Can the Cisco C9200-48PL-E be stacked with other switches?
Yes, the C9200-48PL-E supports StackWise-160 technology, enabling up to 160 Gbps stacking bandwidth when connected with compatible Catalyst 9200 Series switches. This allows seamless scalability and simplified management of multiple switches as a single logical unit.
What security features does the C9200-48PL-E offer?
The switch provides advanced security with AES-128 and AES-256 MACsec encryption to protect data in transit across network links. It also supports Cisco Software-Defined Access (SD-Access) with Identity Services Engine (ISE) integration for policy-based security automation and access control across your network infrastructure.
Is the Cisco C9200-48PL-E suitable for branch office and campus deployments?
Yes, the C9200-48PL-E is ideal for both branch and campus environments, with Plug and Play (PnP) enablement for simple, secure device rollouts and updates. Its combination of high-performance Layer 2/3 switching, PoE+ support for access points, and cloud-managed operations makes it well-suited for modern enterprise networks. Contact us today to discuss your deployment requirements and available options from Barcodes Inc.
The Cisco C9200-48PL-E Ethernet & Network Switches is also known as
CSC-C920048PLE
