Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 4

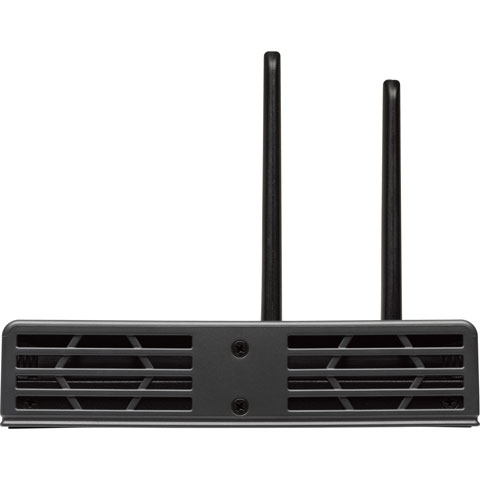

Cisco C819HGW+7-A-A-K9 Data Routers
Part Number:
C819HGW+7-A-A-K9
Model:
C819
Cisco C819 Data Routers Model Overview
The Cisco 819 Integrated Services Routers (ISRs) deliver robust connectivity solutions for corporate teleworkers and small offices with fewer than 20 users. These fixed-configuration routers are designed to bridge LAN and WAN connections while ensuring high levels of security with advanced features such as antivirus protection. Equipped with multiple Ethernet interfaces and optional 4G LTE capabilities, the Cisco 819 ISRs facilitate seamless internet access and reliable data communication, effectively reducing the need for wired connections in various settings.
Key Features
Specifications
Key Features
- Versatile Connectivity: Offers four 10/100 Fast Ethernet and 1 Gigabit Ethernet ports.
- Advanced Security: Integrated Intrusion Prevention System (IPS), Firewall, and URL filtering.
- 3G and 4G LTE Capabilities: Supports multimode 4G LTE with an embedded modem for seamless mobile access.
- Wireless Support: Dual Radio support with CleanAir Technology and Dynamic Frequency Selection.
Specifications
- Model Variants: Cisco 819G, Cisco 819HG, Cisco 819HWD, Cisco 819HGW, Cisco 819HG-4G, Cisco 819G-4G.
- WAN Connections: Serial and Cellular (3G) interfaces.
- Ethernet Ports: Four 10/100 FE and one Gigabit GE.
- Security Features: IPS, DMVPN, IPsec, QoS, Firewall.
- WLAN Features: Dual Radio, CleanAir Technology, Dynamic Frequency Selection.
- GPS Services: Global Positioning System services supported.
Cisco C819HGW+7-A-A-K9 Data Routers Overview
The Cisco 819 ISR is available in both non-hardened (Cisco 819G) and hardened (Cisco 819HG) versions. Both models include support for 3G up to 3.7G wireless WAN (WWAN) speeds. Support for 3G offers cost-effective, rapidly deployable, reliable, and secure primary or backup connectivity. With support for industrial-grade components, the hardened Cisco 819HG extends the footprint and provides deployment flexibility. The Cisco 819HG is an ideal solution for stationary and mobile environments where space, heat dissipation, exposure to extreme temperatures, harsher environments, and low power consumption are critical factors.
Technical Information
Wireless Specifications
Broadband Transmission Technology:
- Cellular
- Ethernet
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
3.75G
Cellular Network Supported:
- WCDMA 850
- WCDMA 900
- WCDMA 1900
- WCDMA 2100
- GSM 850
- GSM 900
- GSM 1800
- GSM 1900
Cellular Data Connectivity Technology:
- HSPA+
- HSDPA
- UMTS
- EDGE
- GPRS
- HSUPA
Antenna Type:
Swivel Dipole Antenna
Wireless Security:
- AES 128/192/256-bit
- IEEE 802.1x
- IPS
Features:
- Quality of Service (QoS)
- MIMO Technology
- GPS Capable
Interfaces/Ports
Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
VGA:
No
Serial:
Yes
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
Yes
Number of Broadband (RJ-45) Ports:
1
I/O Expansions
Total Number of Expansion Slots:
2
Expansion Slot Type:
SIM Card
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
- 10/100Base-TX
- 10/100/1000Base-T
VPN Supported:
Yes
Management & Protocols
Management:
- Web Base Management
- SNMP v1,v2,v3
- DHCP
- MIB
- VLAN
- Telnet
- CLI
- MIB II
- Cisco IOS Software Release 15.2 (4) M1 or Later
Security Features:
- IPsec
- 3DES
- NAT
- SPI
- L2TPv3
- ACL
- MAC Address Filtering
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
AC Supply
Physical Characteristics
Form Factor:
Desktop
Height:
1.7"
Width:
7.7"
Depth:
9"
Weight (Approximate):
3.40 lb
Miscellaneous
Certifications & Standards:
Safety:
- UL 60950-1
- CAN/CSA C22.2 No. 60950-1
- EN 60950-1, 2nd edition
- CB to IEC 60950-1
- EN55022/CISPR22
- CFR 47 Part 15
- ICES003
- VCCI-V-3
- CISPR22
- CNS13438
- EN61000-3-2
- EN61000-3-3
- EN61000-6-1
- EN55024
- CISPR24
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-11
- EN300-386
- EN61373
- EN301 489-1
- EN 301 489-7
- EN301 489-24
- EN 301 908-1,
- EN 301 908-2,
- EN 301 511, 47 CFR Part 22, and 47 CFR Part 24
- 802.11a
- 802.11b
- 802.11g
- 802.11n
- 802.1d
- 802.1Q
- 802.1x
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0882658515538
UPC:
882658515538
EAN:
0882658515538
UNSPSC:
43222609
Frequently Asked Questions
What connectivity options does the Cisco C819HGW+7-A-A-K9 provide for remote offices?
The Cisco 819HGW provides multiple connectivity options including four 10/100 Fast Ethernet ports, one Gigabit Ethernet port, Serial WAN connections, and embedded 3G HSPA+ cellular capability with dual SIM card slots for failover. This router also supports optional WiFi radio (AP802H-AGN) for wireless local area network (WLAN) access, making it ideal for small offices with fewer than 20 users that need flexible data communication across both wired and wireless connections.
Is the Cisco 819HGW suitable for teleworkers and branch offices?
Yes, the Cisco 819HGW is specifically designed to provide Internet, VPN, data, and backup capability to corporate teleworkers and remote small offices with fewer than 20 users. It delivers advanced features such as antivirus protection and can bridge and perform multiprotocol routing between LAN and WAN ports, making it well-suited for distributed workforce deployments.
What security features are included with the Cisco C819HGW+7-A-A-K9?
The Cisco 819HGW includes built-in antivirus protection and supports advanced security features such as USB security tokens and USB flash memory for authentication. It also provides VPN capability for secure remote access and supports out-of-band modem control and status monitoring through Control and Status (CNS) for enhanced security management.
Can the Cisco 819HGW support GPS and SMS services?
Yes, the Cisco 819HGW supports Global Positioning System (GPS) services and SMS services through its embedded 3G modem. These capabilities enable location tracking and text-based communication for remote monitoring and management applications in field operations and logistics scenarios.
What are the memory specifications for the Cisco C819HGW+7-A-A-K9?
The Cisco 819HGW provides 256 MB of flash memory for configuration and application storage. This memory capacity is sufficient for supporting the router's advanced features including VPN, antivirus protection, and dual SIM management in small office and remote worker deployments.
How does the dual radio capability of the Cisco 819HGW benefit connectivity?
The Cisco 819HGW's dual radio configuration provides both 3G HSPA+ cellular and optional WiFi (802.11n) connectivity, enabling redundant connectivity paths and seamless failover between cellular and wireless broadband connections. This hardened design ensures continuous network availability for mission-critical remote office operations even when primary connections fail.
The Cisco C819HGW+7-A-A-K9 Data Routers is also known as
CSC-C819HGW+7AAK9
